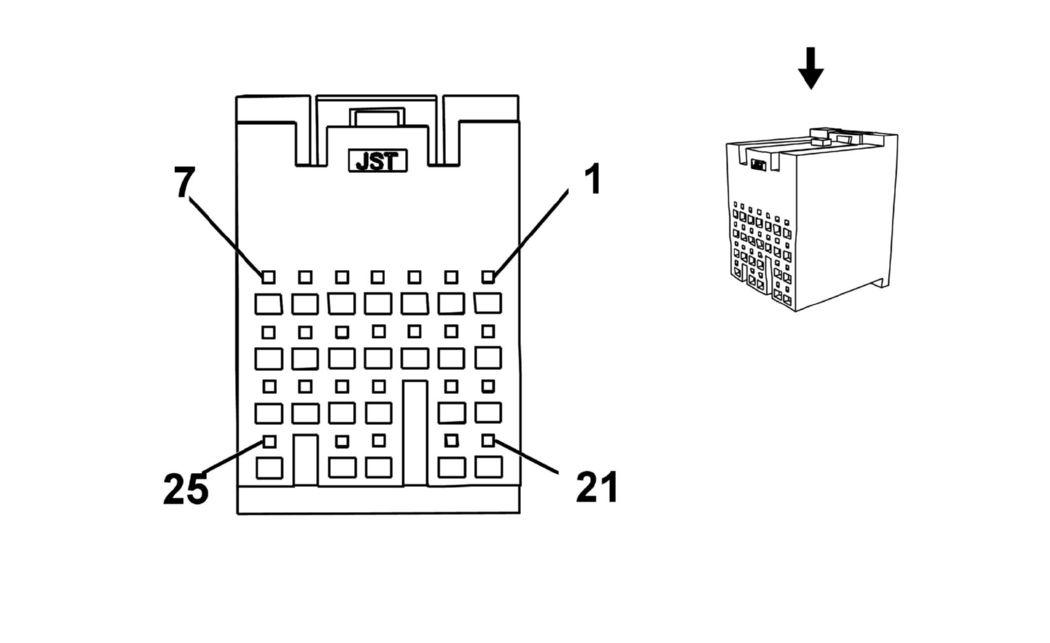

K9 Body Control Module X3

WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13594127
Service Connector: 19151261
Description: 25-Way F 0.64 Series (L-GN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	D-GN/WH	3277	Vehicle Anti-Theft System Immobilizer Low Reference	I	-
2	0.35	L-BU	7533	Local Interconnect Network Serial Data Bus 11	I	-
3	0.35	D-GN	3166	Mode Door Stepper Motor Control (2)	I	-
4	0.35	YE	7556	Lighting Control Switch Reference	I	-
5	0.35	BN	4	Accessory Ignition Voltage	I	-
6	0.35	PK	3	Run/Crank Ignition 1 Voltage	I	-
7	0.5	YE	143	Accessory Ignition Voltage	I	-
8	0.35	L-GN	6818	Steering Wheel Resistor Ladder Signal 1	I	-
9	0.35	GY	1884	Cruise Control Set/Coast/Resume/Accelerate Switch Signal	I	-
10	0.35	TN/BK	6009	Windshield Wiper Switch Low Reference	I	-
11	0.35	PU	524	Headlamp Dimmer Switch High Beam Signal	I	-
12	0.35	D-GN	663	Hazard Switch Left Turn Signal	I	-
13	0.35	L-BU	1714	Windshield Wiper Switch Low Signal	I	-
14	-	-	-	Not Occupied	-	-
15	0.35	PK	1020	Off/Run/Crank Ignition Voltage	I	-
16	-	-	-	Not Occupied	-	-
17	0.35	YE	307	Headlamp Switch Flash To Pass Signal	I	-
18	0.35	L-GN/WH	3287	Horn Switch Signal	I	-
19	-	-	-	Not Occupied	-	-
20	0.35	L-GN	1715	Windshield Wiper Switch High Signal	I	-
21	0.35	PU	5526	Tap Up/Tap Down Switch Signal	I	-
22	0.35	WH/BK	1073	Ignition Key Resistor Signal	I	-
23	-	-	-	Not Occupied	-	-
24	0.35	TN	664	Hazard Switch Right Turn Signal	I	-
25	0.35	PK	94	Windshield Washer Switch Signal	I	-
