K9 Body Control Module X4

WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

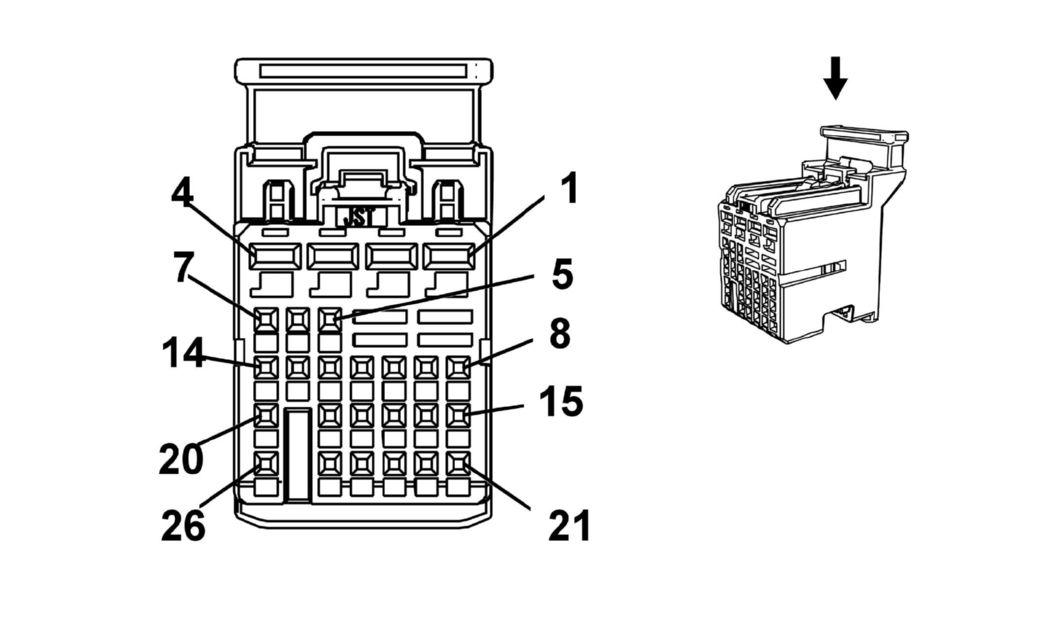

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13594129
Service Connector: 19151263
Description: 26-Way F 0.64 2.8 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.8	D-BU	7539	Right Front DRL Control	II	-
2	0.8	L-BU	7538	Left Front DRL Control	II	-
3	0.5 0.8	D-BU/WH D-BU/WH	1315 1315	Right Front Turn Signal Lamp Control	II	- -
4	0.5	D-GN/WH	1335	Right Rear Turn Signal Lamp Control	II	-
5	0.5	D-GN	7541	Right Rear Stop Lamp Control	I	-
6	0.5	YE	7542	Left Rear Stop Lamp Control	I	-
7	0.5	BN/L-BU	6993	Rear Left Park Lamp Control Electronically Controlled	I	-
8 - 10	-	-	-	Not Occupied	-	-
11	0.5	WH	5065	Stop Lamp Relay Coil Control	I	-
12	0.35	TN	755	RAP Relay Coil Control	I	-
13	0.5	D-GN/YE	6846	Rear License Lamp Control	I	-
14	0.35	OG	2268	Windshield Washer Relay Control	I	-
15	0.35	YE	5199	Run/Crank Relay Coil Control	I	-
16	0.35	GY	91	Windshield Wiper Motor Relay Coil Control	I	-
17	0.5	YE	196	Windshield Wiper Motor Park Switch Signal	I	-
18	0.5	WH	5075	Current Sensor Signal	I	-
19	-	-	-	Not Occupied	-	-
20	0.5	RD/WH	2340	Battery Positive Voltage	I	-
21	0.5	PK	5076	Current Sensor Control	I	-
22	0.5	D-BU	5985	Accessory Wakeup Serial Data	I	-
23	0.35	L-BU	5986	Serial Data Communication Enable	I	-
24	0.5	PK/BK	109	Hood Ajar Switch Signal	I	-
25	-	-	-	Not Occupied	-	-
26	0.5	BK	2550	Ground	I	-
