K9 Body Control Module X5
WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

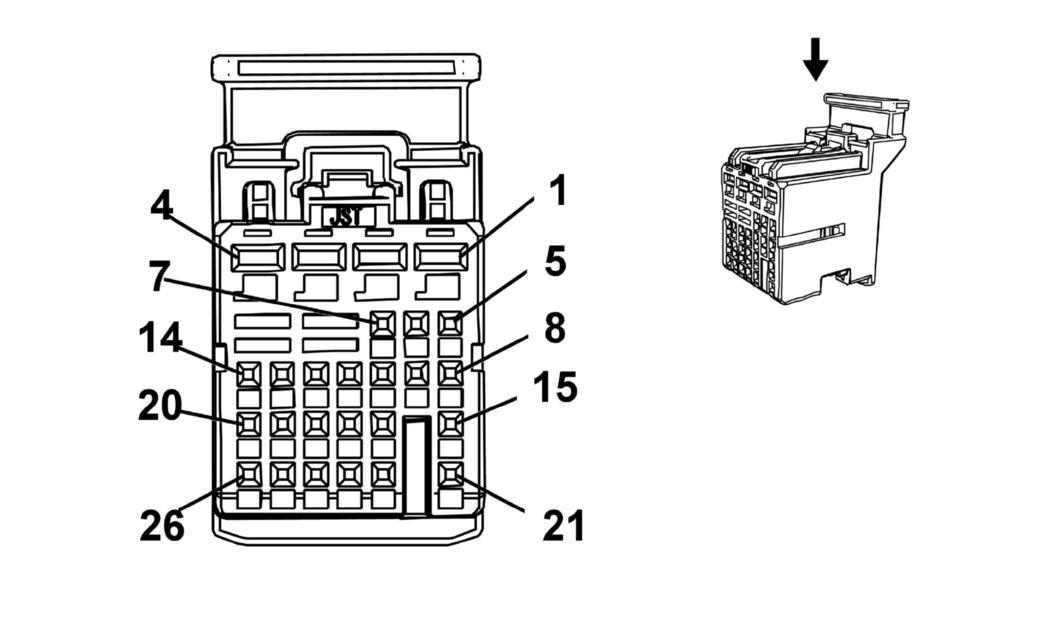

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575870 | J-35616-64B (LT BU) | J-38125-12A | SNAC3-A021T-M0.64 | Delphi 20 | J | J |
| II | 13575871 | J-35616-35 (VT) | J-38125-12A | SNAC-A061T-M2.8 | Delphi 20 | E | A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | YE/BK | 1334 | Left Rear Turn Signal Lamp Control | II | - |
| 2 | 0.5 0.8 |
L-BU/WH L-BU/WH |
1314 1314 |
Left Front Turn Signal Lamp Control | II | - - |
| 3 | 0.8 | RD/WH | 3840 | Battery Positive Voltage | II | - |
| 4 | 0.8 | RD/WH | 3440 | Battery Positive Voltage | II | - |
| 5 | 0.5 | OG | 122 | Rear Fog Lamp Control | I | - |
| 6 | 0.5 | BN | 5077 | Current Sensor Low Reference | I | - |
| 7 | 0.5 | BN/GY | 6995 | Rear Right Park Lamp Control Electronically Controlled | I | - |
| 8 - 9 | - | - | - | Not Occupied | - | - |
| 10 | 0.35 | D-GN/WH | 1317 | Fog Lamp Relay Control | I | - |
| 11 | 0.35 | TN | 6188 | Lift Glass/Rear Compartment Lid Motor Release Control | I | - |
| 12 | 0.5 | L-BU/WH | 6311 | Cruise/ETC/TCC Brake Signal | I | - |
| 13 | 0.35 | PK/WH | 1970 | Headlamp Low Beam Relay Control | I | - |
| 14 | 0.5 | WH | 2282 | Headlamp Washer Relay Control | I | - |
| 15 - 17 | - | - | - | Not Occupied | - | - |
| 18 | 0.5 | TN/WH | 1969 | Headlamp High Beam Relay Control | I | - |
| 19 | 0.35 | TN | 28 | Horn Relay Control | I | - |
| 20 | 0.5 | GY | 7599 | Siren Control | I | - |
| 21 - 23 | - | - | - | Not Occupied | - | - |
| 24 | 0.35 | TN | 860 | Front Windshield Wiper Switch High Signal | I | - |
| 25 - 26 | - | - | - | Not Occupied | - | - |
