Audio Disc Player and USB Receptacle Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

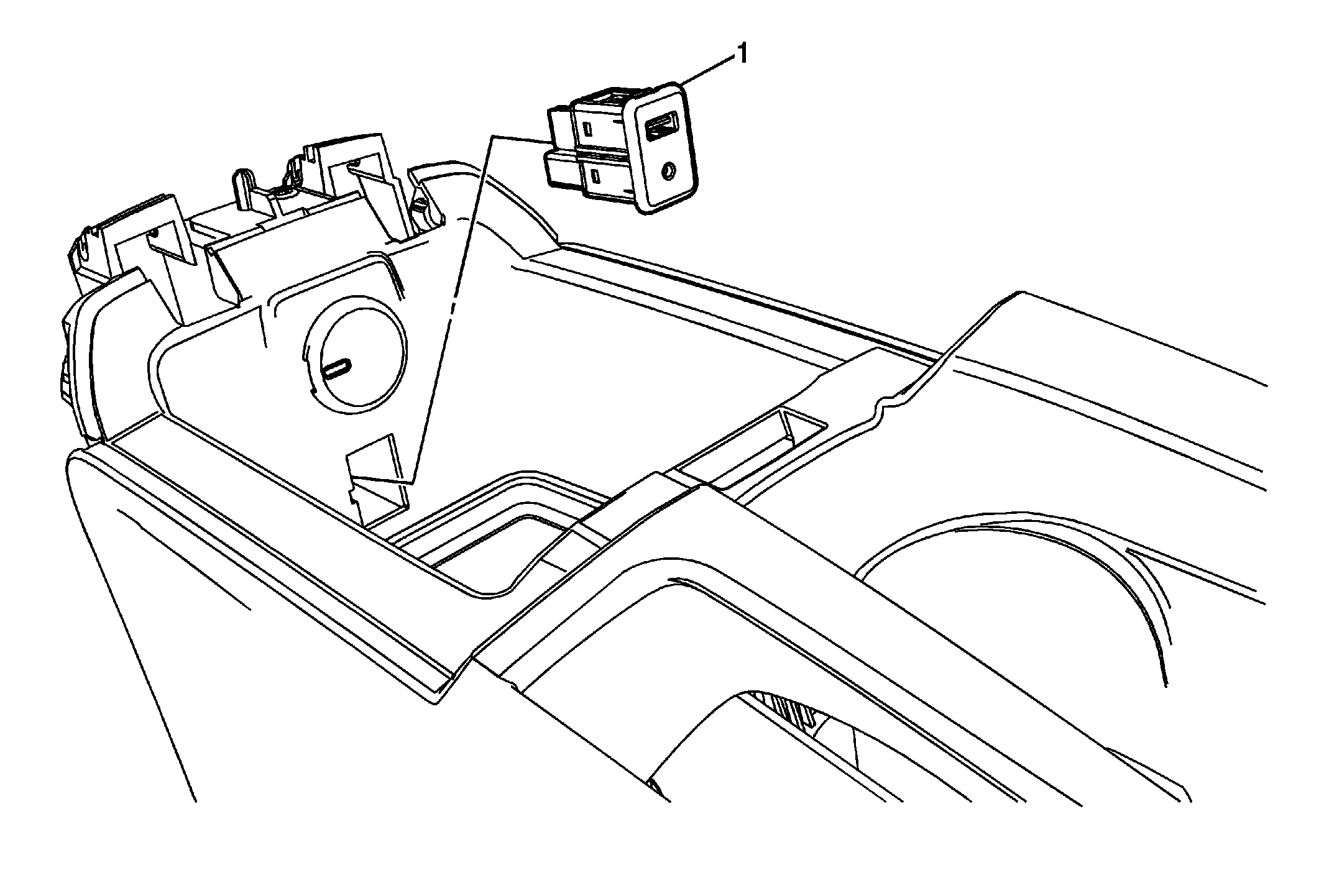

Fig 1: Audio Disc Player & USB Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the front floor console armrest. Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement
1	Audio Disc Player and USB Receptacle Procedure Depress the tabs to remove the receptacle. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Open the front floor console armrest.
Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement

Audio Disc Player and USB Receptacle

Procedure

Depress the tabs to remove the receptacle.
Disconnect the electrical connector.
