Radio Antenna Base Replacement (Convertible)

WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

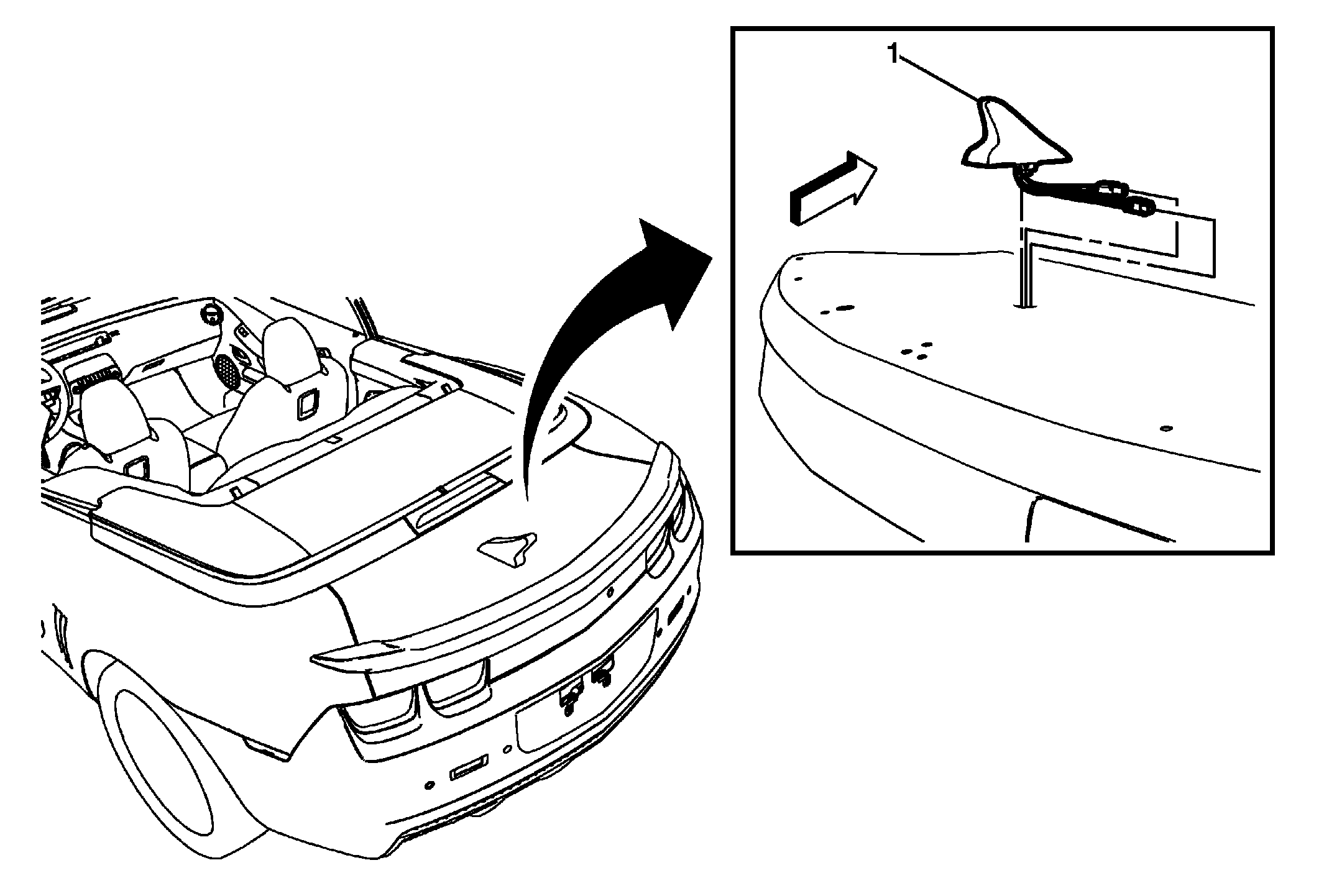

Fig 1: Radio Antenna Base (Convertible)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid finish panel. Refer to Rear Compartment Lid Carpet Replacement (Coupe)Rear Compartment Lid Carpet Replacement (Convertible) .
1	Radio Antenna Base CAUTION: Refer to Fastener Caution . Procedure Remove the integral bolt and retainer. Disconnect the electrical connections. Disconnect the antenna cables. Feed the wiring and cable up through the hole in the rear compartment lid panel. Tighten 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid finish panel. Refer to Rear Compartment Lid Carpet Replacement (Coupe)Rear Compartment Lid Carpet Replacement (Convertible) .

Radio Antenna Base

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the integral bolt and retainer.
Disconnect the electrical connections.
Disconnect the antenna cables.
Feed the wiring and cable up through the hole in the rear compartment lid panel.

Tighten
9 N.m (80 lb in)
