Body Control Module Replacement

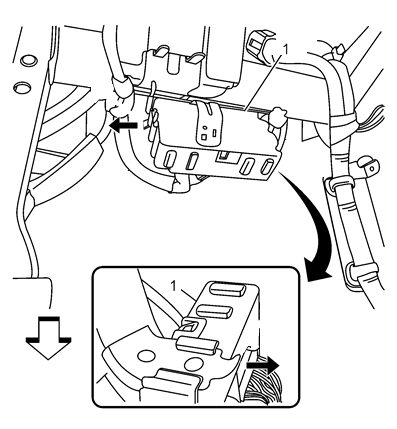

GM3910711Courtesy of
Callout Component Name

Preliminary Procedure

  1. If a replacement module is installed, save current module specification. Control Module References
  2. Battery Negative Cable Disconnection and Connection - Disconnect
  3. Instrument Panel Storage Compartment Replacement - Remove
1 Body Control Module

Procedure

  1. Electrical Connector - Disconnect
  2. Press on the tabs to release the body control module.
  3. If a replacement module is installed, program the module. Control Module References
