Remote Control Door Lock Receiver Replacement

Courtesy of

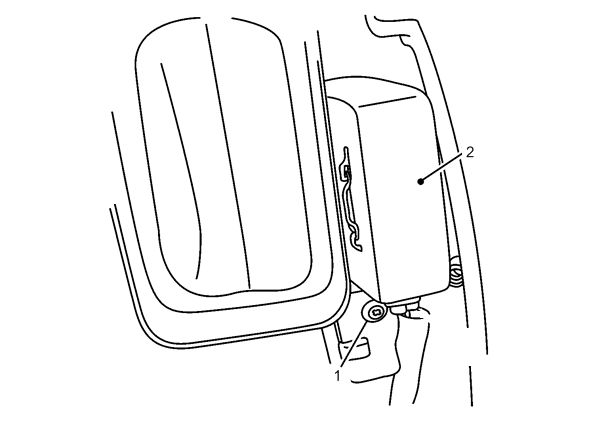

Callout	Component Name
Preliminary Procedures Instrument Panel Trim Panel Replacement - Center . Instrument Panel Storage Compartment Replacement .
1	Fastener CAUTION: Refer to Fastener Caution .
2	Remote Control Door Lock Receiver Procedure NOTE: The remote control door lock receiver is located near the passenger side center ventilation duct. Electrical Connector - Disconnect

Callout

Component Name

Preliminary Procedures
Instrument Panel Trim Panel Replacement - Center .
Instrument Panel Storage Compartment Replacement .

Fastener

CAUTION:

Refer to Fastener Caution .

Remote Control Door Lock Receiver

Procedure

NOTE:

The remote control door lock receiver is located near the passenger side center ventilation duct.

Electrical Connector - Disconnect
