Communication Interface Module Bracket Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

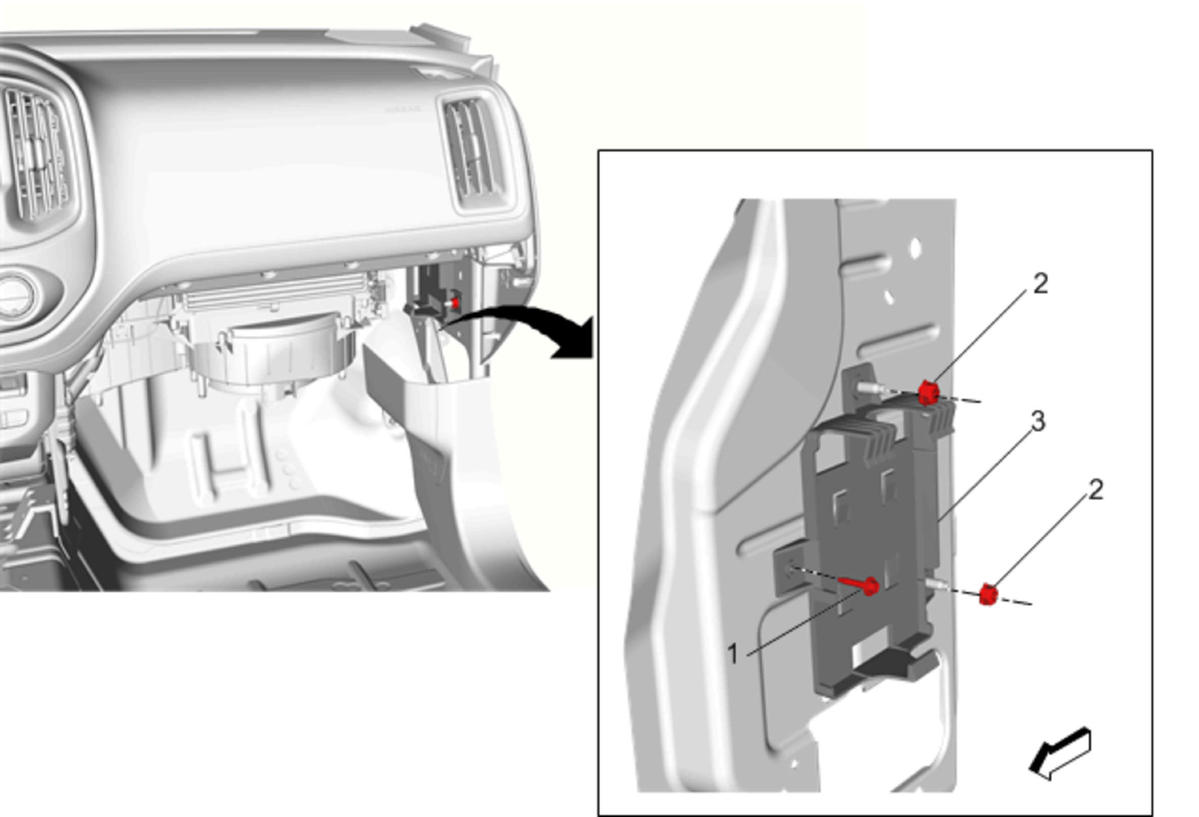

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the communication interface module. Refer to Communication Interface Module Replacement . |
|
| 1 | Communication Interface Module Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Communication Interface Module Bracket Nut (Qty: 2) Tighten 4 N.m (35 lb in) |
| 3 | Communication Interface Module Bracket Procedure Transfer components, as necessary. |
