Radio Control Switch Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

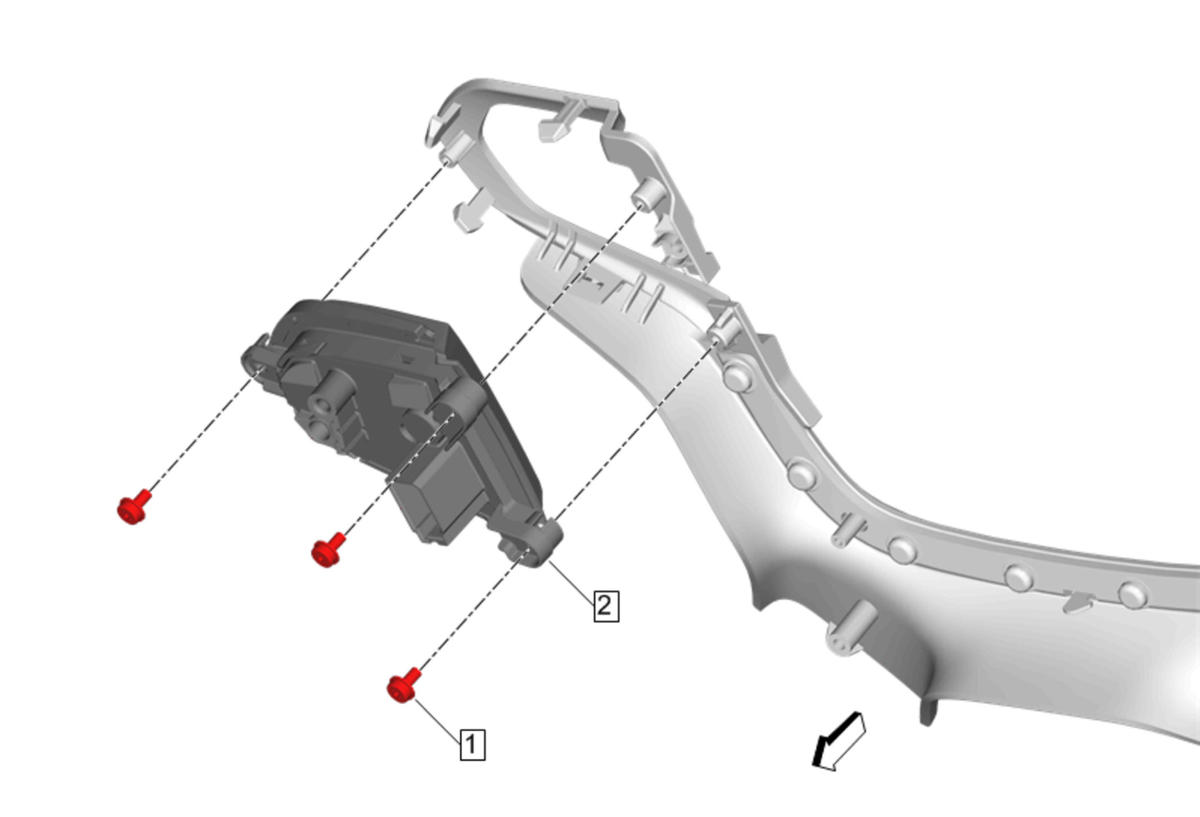

Fig 1: Radio Control Switch
GM3744432Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement (GMC, With Radio Controls)Steering Wheel Spoke Cover Replacement (Chevrolet, With Radio Controls)
1 Steering Wheel Spoke Cover Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .

2 Radio Control Switch
