Keyless Entry - Keyless Entry Control Module

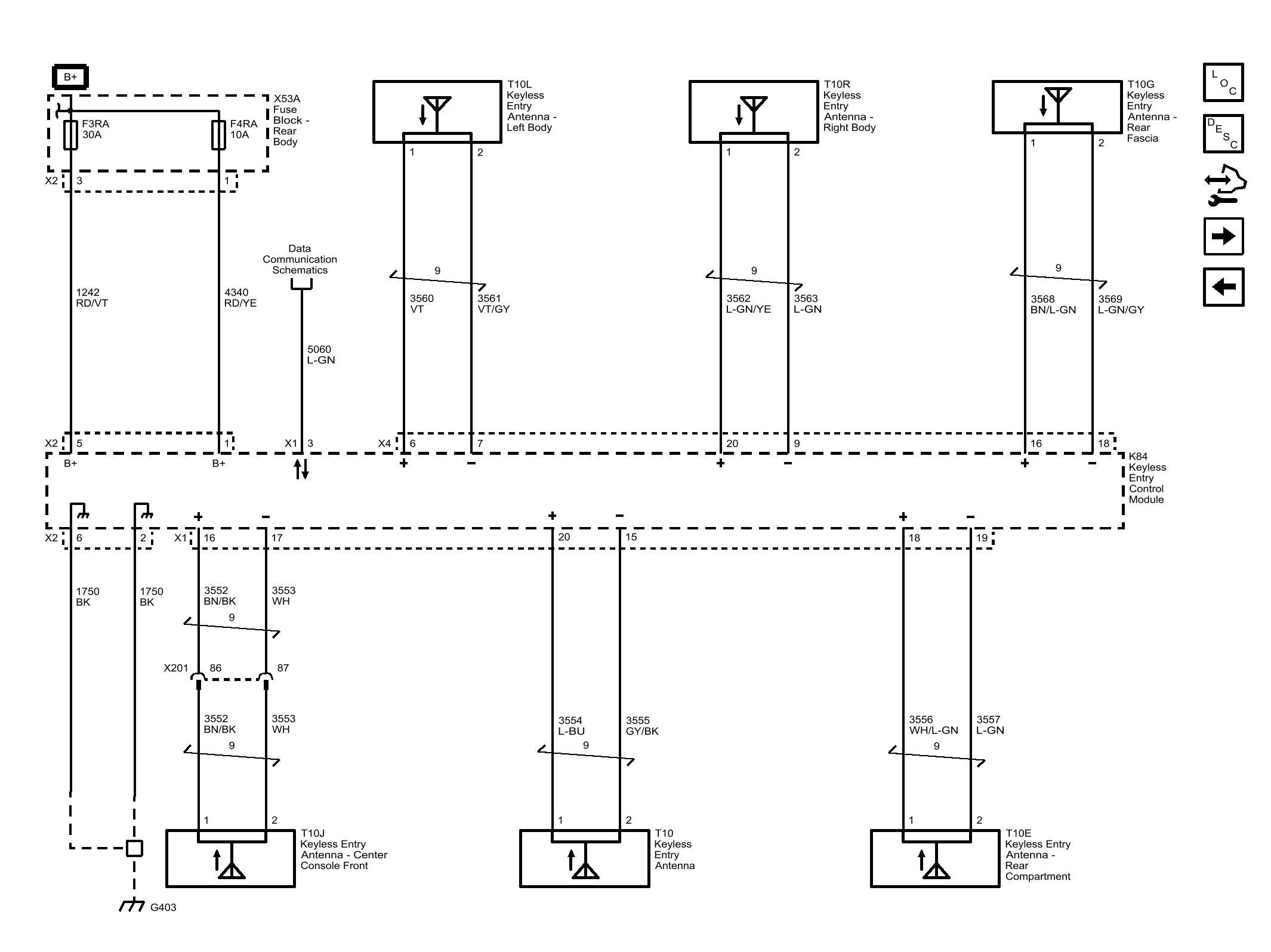

Fig 1: Keyless Entry - Keyless Entry Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
