Installation Procedure

  1. Generator (2)» Install

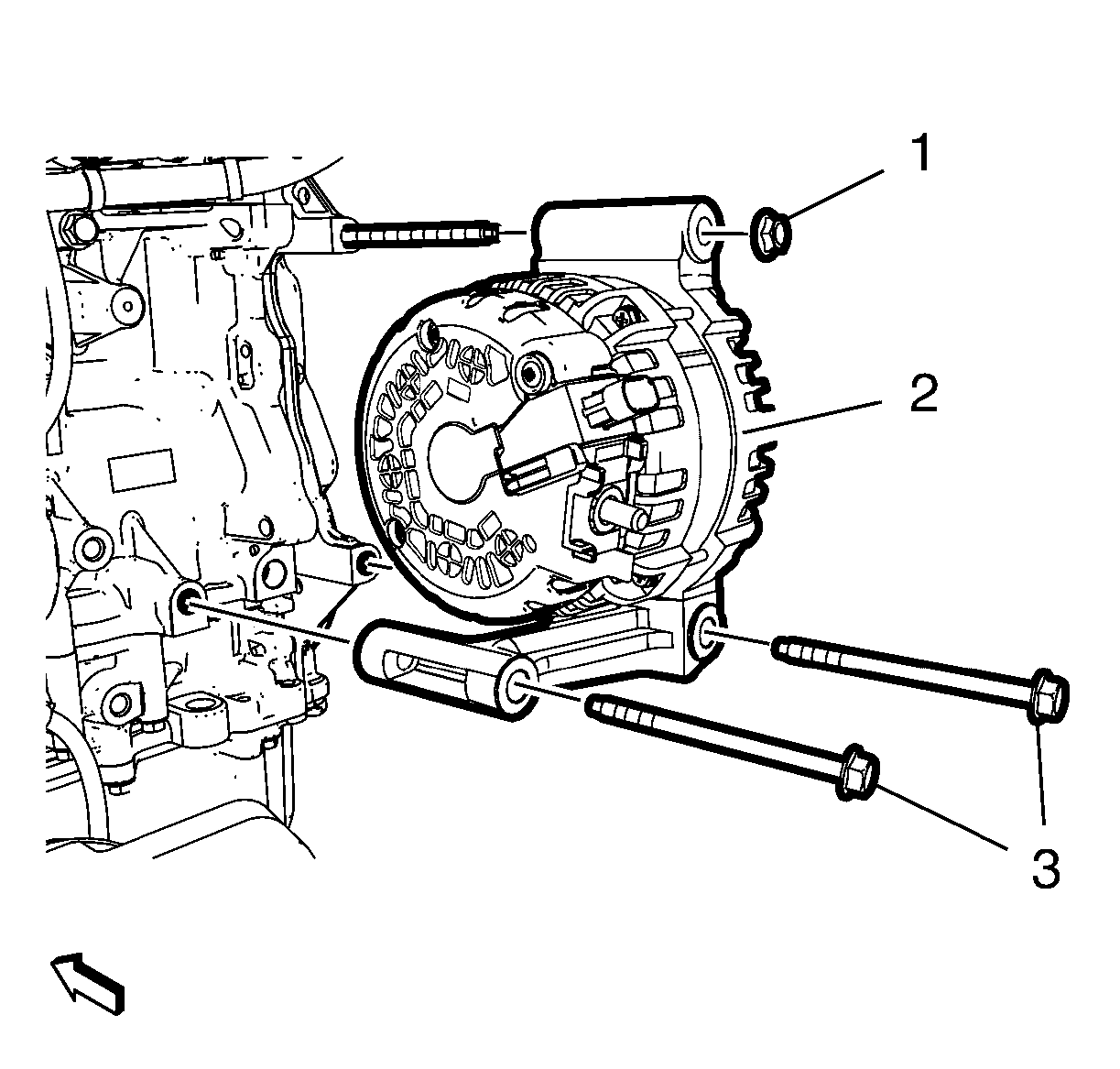

    Fig 1: Generator Nut and Bolts
    GM3684405Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 generator bolts (3) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the generator nut (1) and tighten to 22 N.m (16 lb ft).
  4. Install the generator and starter cable (3).

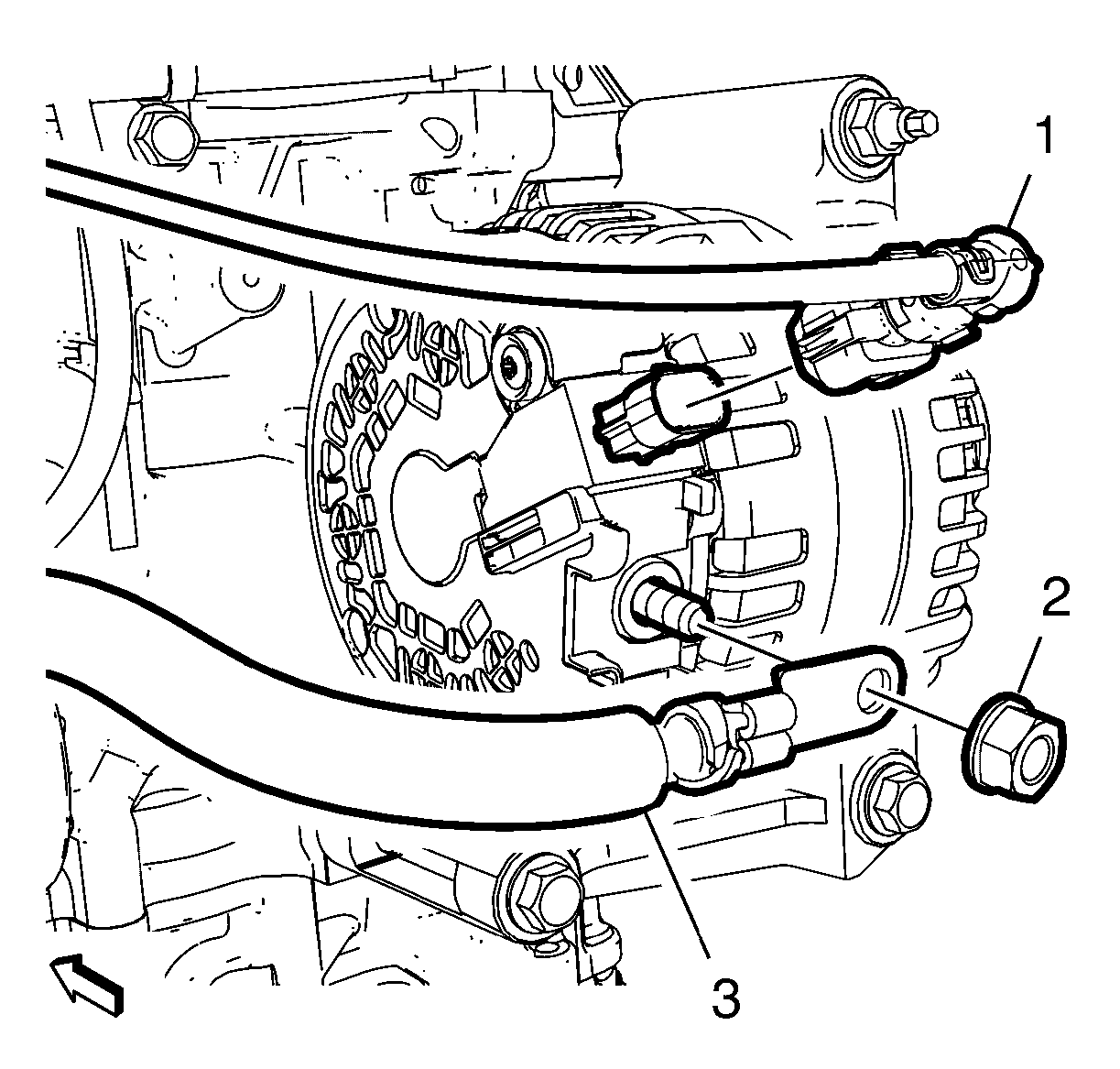

    Fig 2: Generator Wiring Harness Plug, Generator And Starter Cable With Generator Lead Nut
    GM3684404Courtesy of GENERAL MOTORS COMPANY
  5. Install the generator and starter cable generator lead nut (2) and tighten to 12.5 N.m (111 lb in).
  6. Connect the generator wiring harness plug (1)
  7. Exhaust Front Pipe Replacement » Install
  8. Lower the vehicle.
  9. Drive Belt Replacement » Install
  10. Battery Negative Cable Disconnection and Connection » Connect
