Instrument Panel Components Backside Left
Instrument Panel Components Backside Left
Items
1. K9 Body Control Module
K9 Body Control Module X1 (J69)
K9 Body Control Module X1 (JFA)
K9 Body Control Module X2 (J69)
K9 Body Control Module X2 (JFA)
K9 Body Control Module X3 (J69)
K9 Body Control Module X3 (JFA)
K9 Body Control Module X4
K9 Body Control Module X5
K9 Body Control Module X6
K9 Body Control Module X7

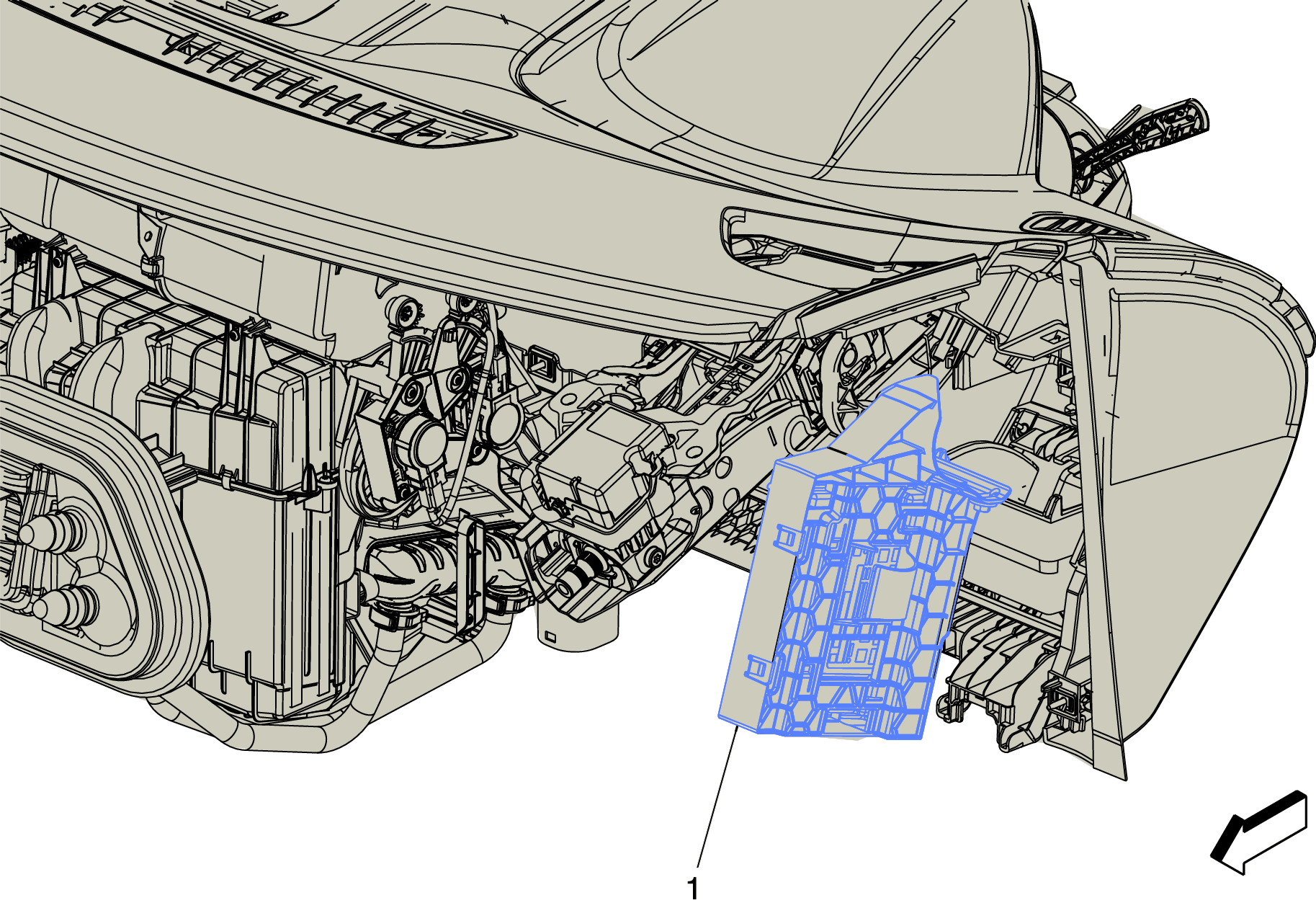

Fig 1: Instrument Panel Components Backside Left
Courtesy of GENERAL MOTORS COMPANY
