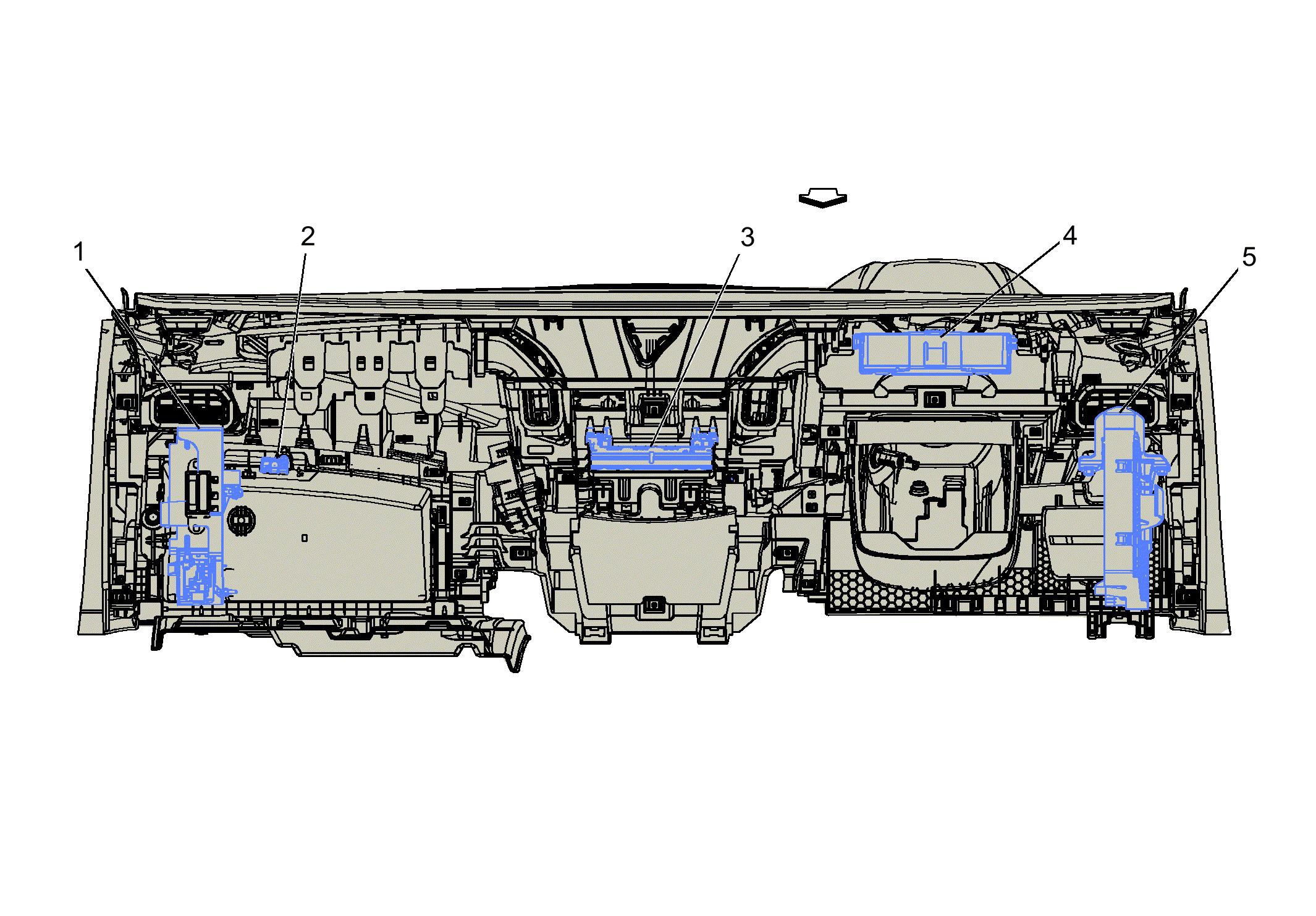

Instrument Panel Components Backside
Instrument Panel Components Backside
| Items |
|---|
| 1. A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (IOA)A11 Radio X2 (IO5/IO6)A11 Radio X2 (IOA)A11 Radio X3 (IO5/IO6) |
| 2. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
| 3. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2 |
| 4. K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1K73 Telematics Communication Interface Control Module X2 |
| 5. K9 Body Control Module K9 Body Control Module X1 (J69) |
