Fuel Rail Components (L3G/LE2)

Fuel Rail Components (L3G/LE2)

Items
1. Q17A Fuel Injector 1
2. B310 Fuel Pressure/Temperature Sensor
3. Q17D Fuel Injector 4
4. Q17C Fuel Injector 3
5. Q17B Fuel Injector 2

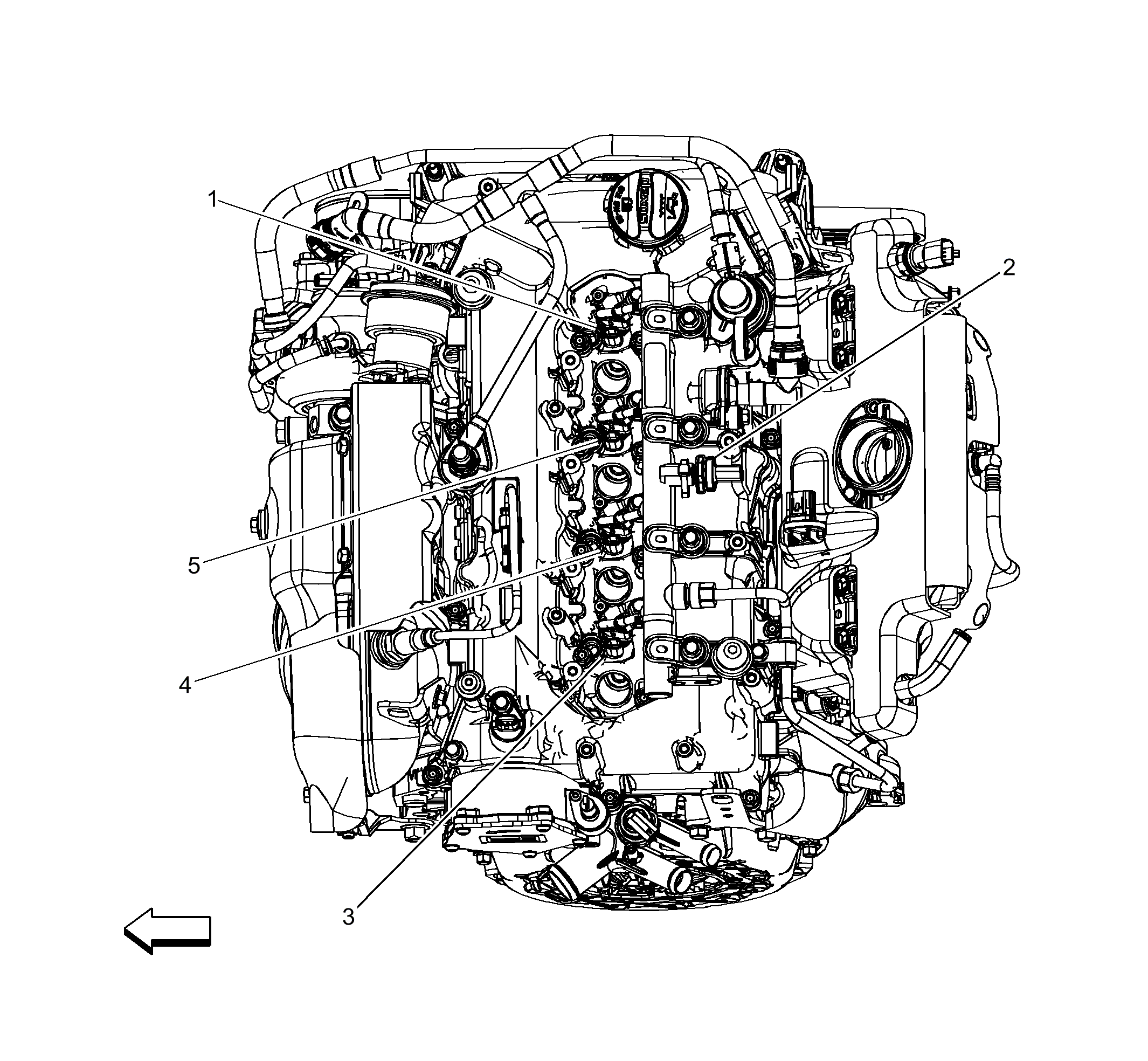

Fig 1: Fuel Rail Components (L3G/LE2)
GM4579679Courtesy of GENERAL MOTORS COMPANY
