Windshield Wiper System Module Replacement

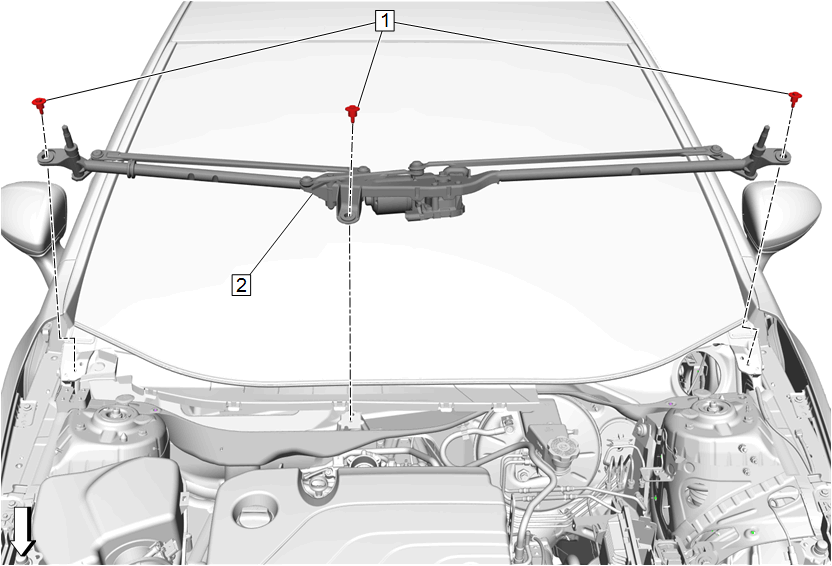

Fig 1: Windshield Wiper System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Inlet Grille Panel Replacement Dash Upper Extension Panel Opening Cover Replacement
1	Windshield Wiper System Module Bolt [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Windshield Wiper System Module Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Windshield Wiper System Module Bolt [3x]

CAUTION: Fastener Caution

Tighten
9 N.m (80 lb in)

Windshield Wiper System Module
Procedure
Disconnect the electrical connector.
