Audio Input (IOA)

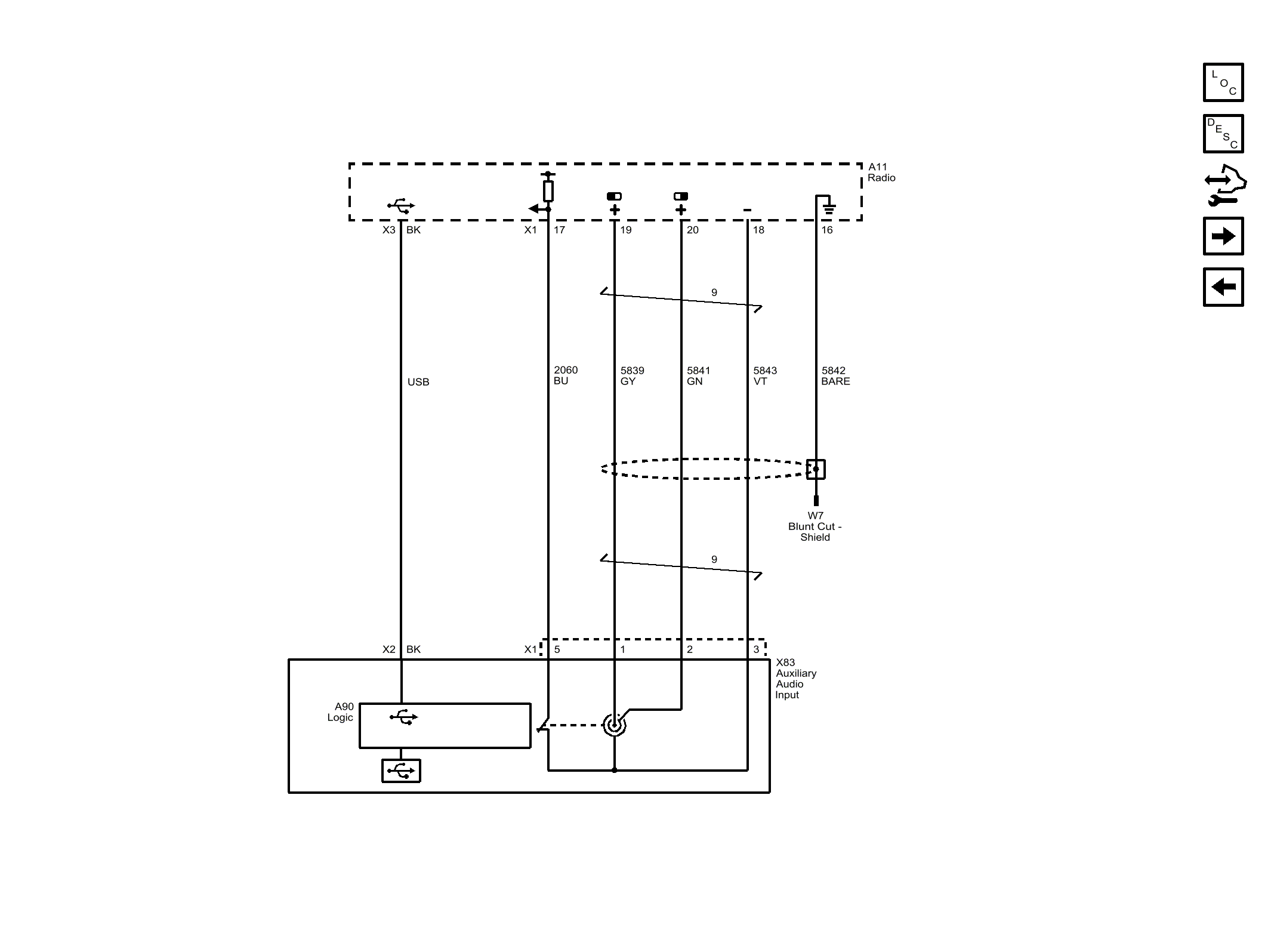

Fig 1: Audio Input (IOA)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
