Object Detection System And Pedestrian Protection System (VIN P)
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
UD7
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Object Detection Wiring Schematics: UD7

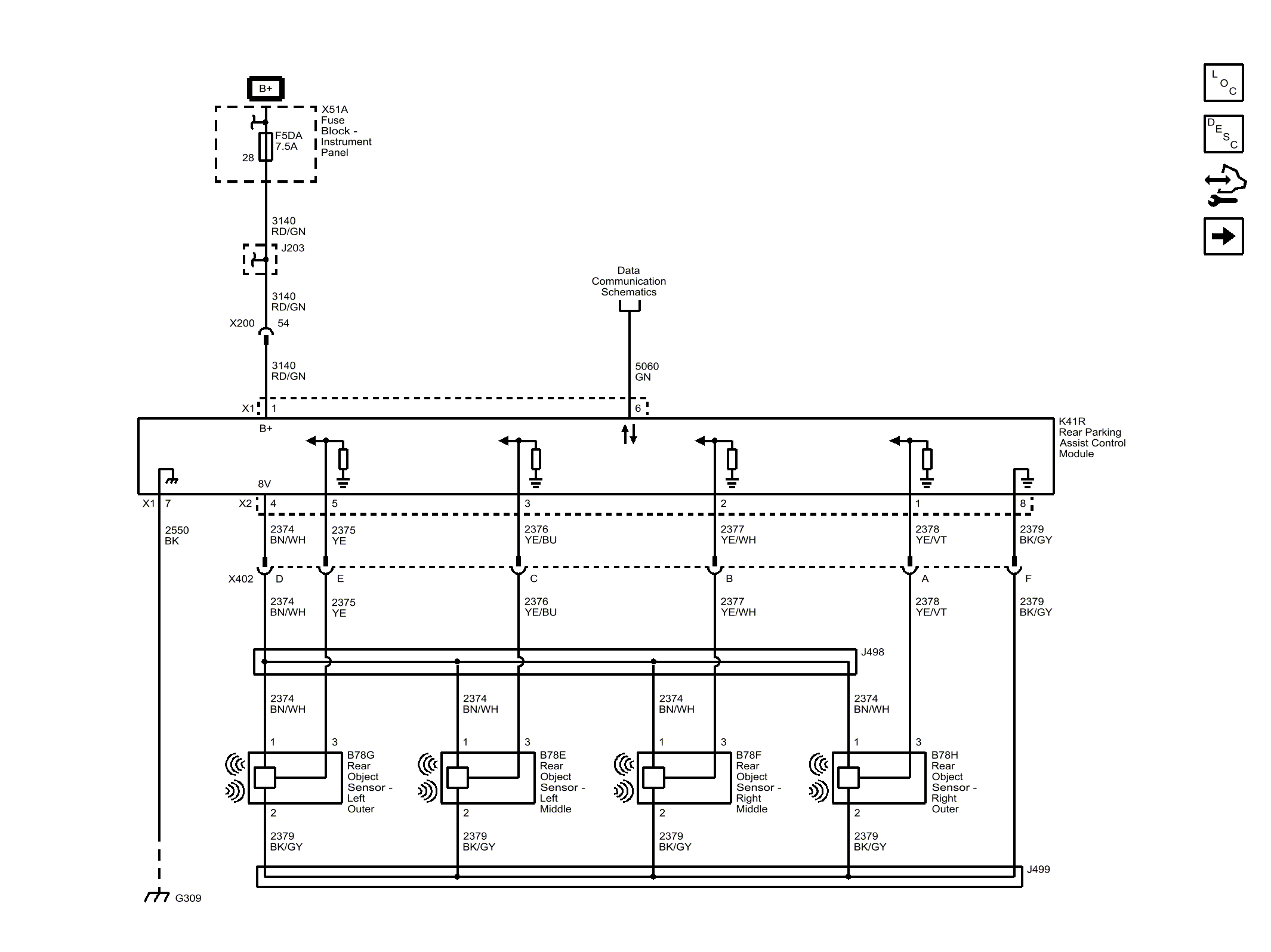

Fig 1: UD7
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
