Rear Vision Camera (With UYS)(Object Detection And Pedestrian Protection System)

WARNING: This page is about a different car, the 2015 GMC Savana 3500, 2015 GMC Savana 2500, 2015 Chevrolet Express 3500, and 2015 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

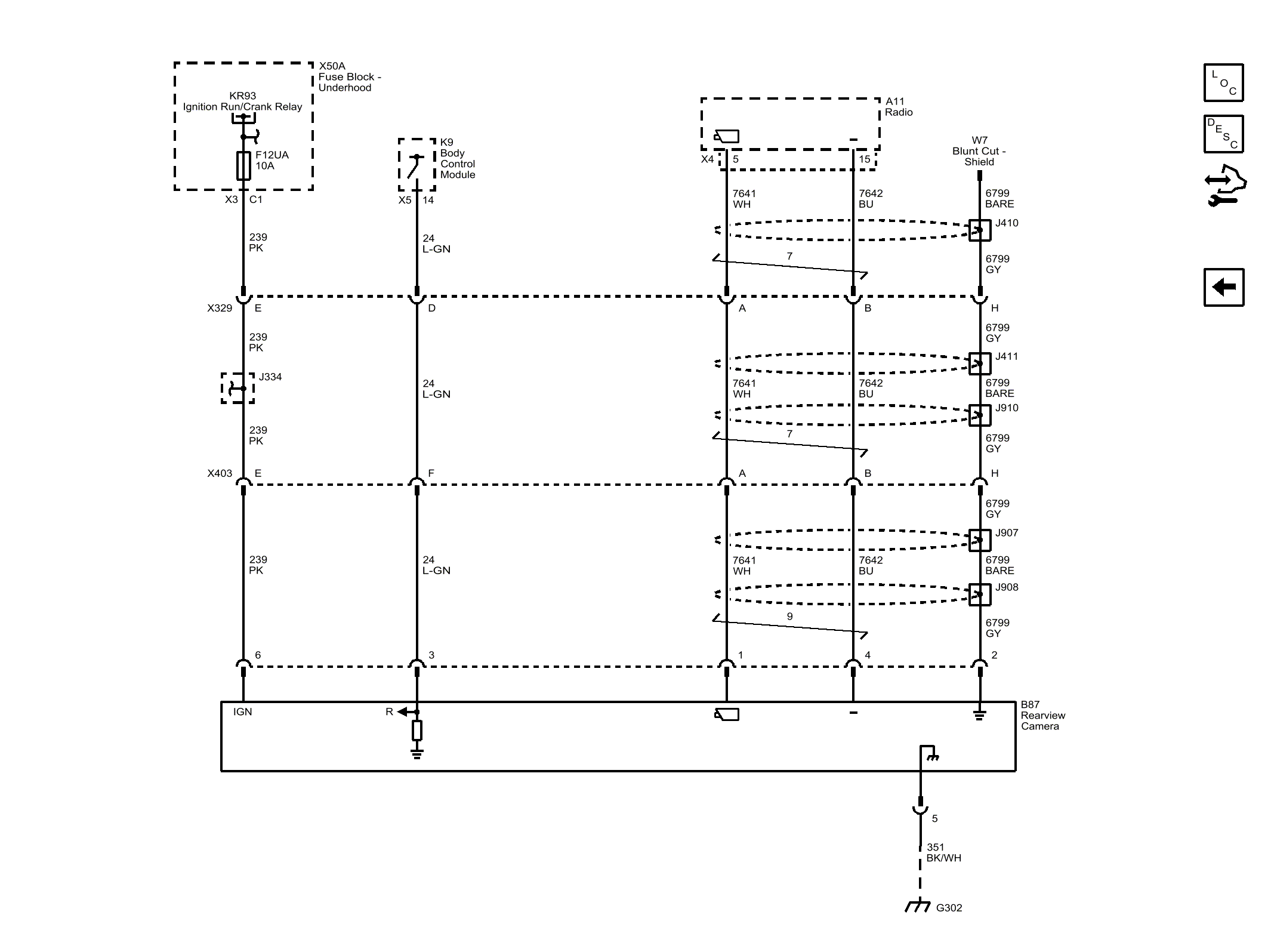

Fig 1: Rear Vision Camera (with UYS)
GM3805409Courtesy of GENERAL MOTORS COMPANY
