Battery Current Sensor Replacement

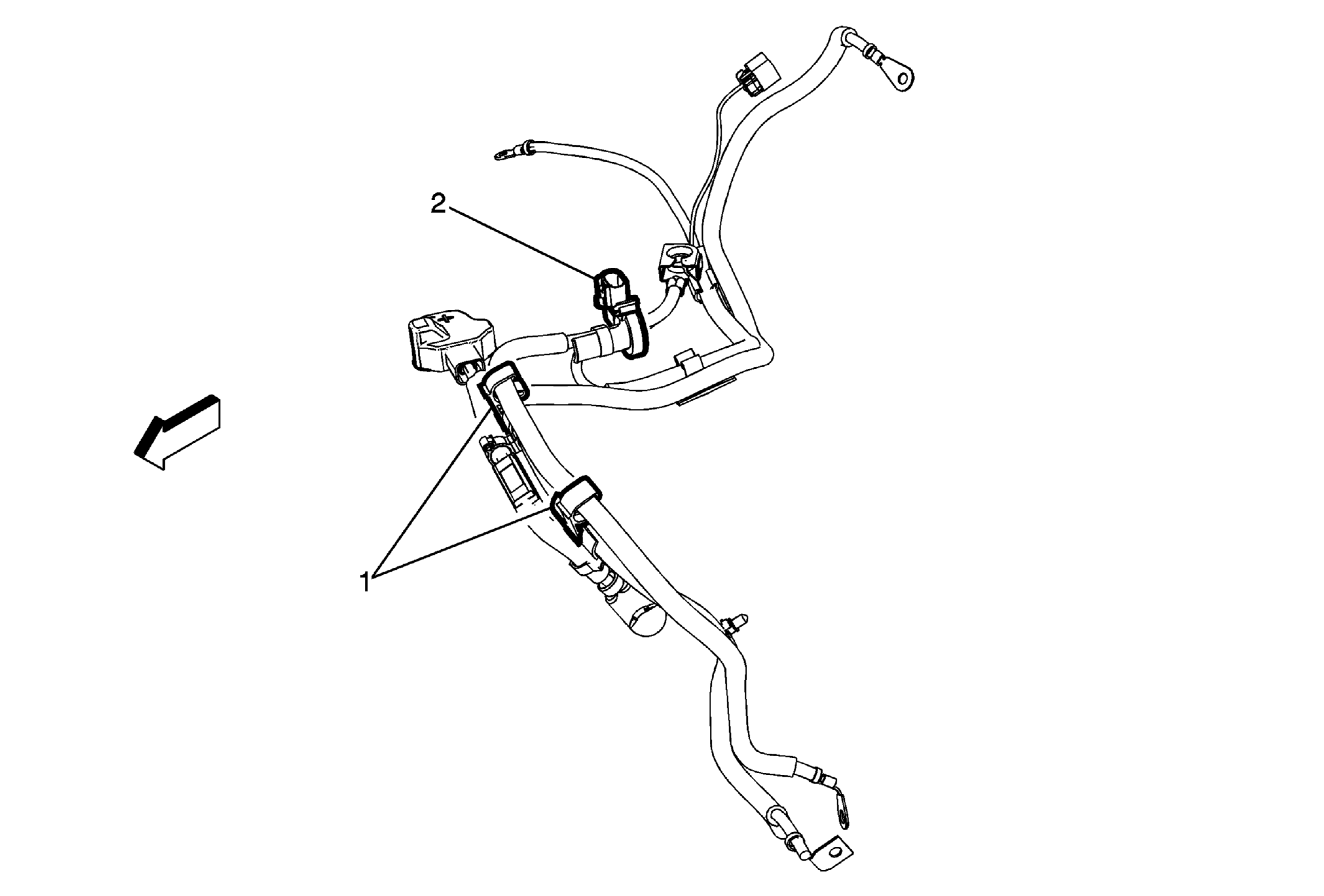

Fig 1: Battery Current Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the battery positive and negative cable. Refer to Battery Positive and Negative Cable Replacement .
1	Battery Positive and Negative Cable Retainers
2	Battery Current Sensor Procedure The battery current sensor is part of the battery positive and negative cable. NOTE: If the battery current sensor needs to be replaced, replace the battery positive and negative cable.
