Body Front Wiring Harness Fuse Block Replacement

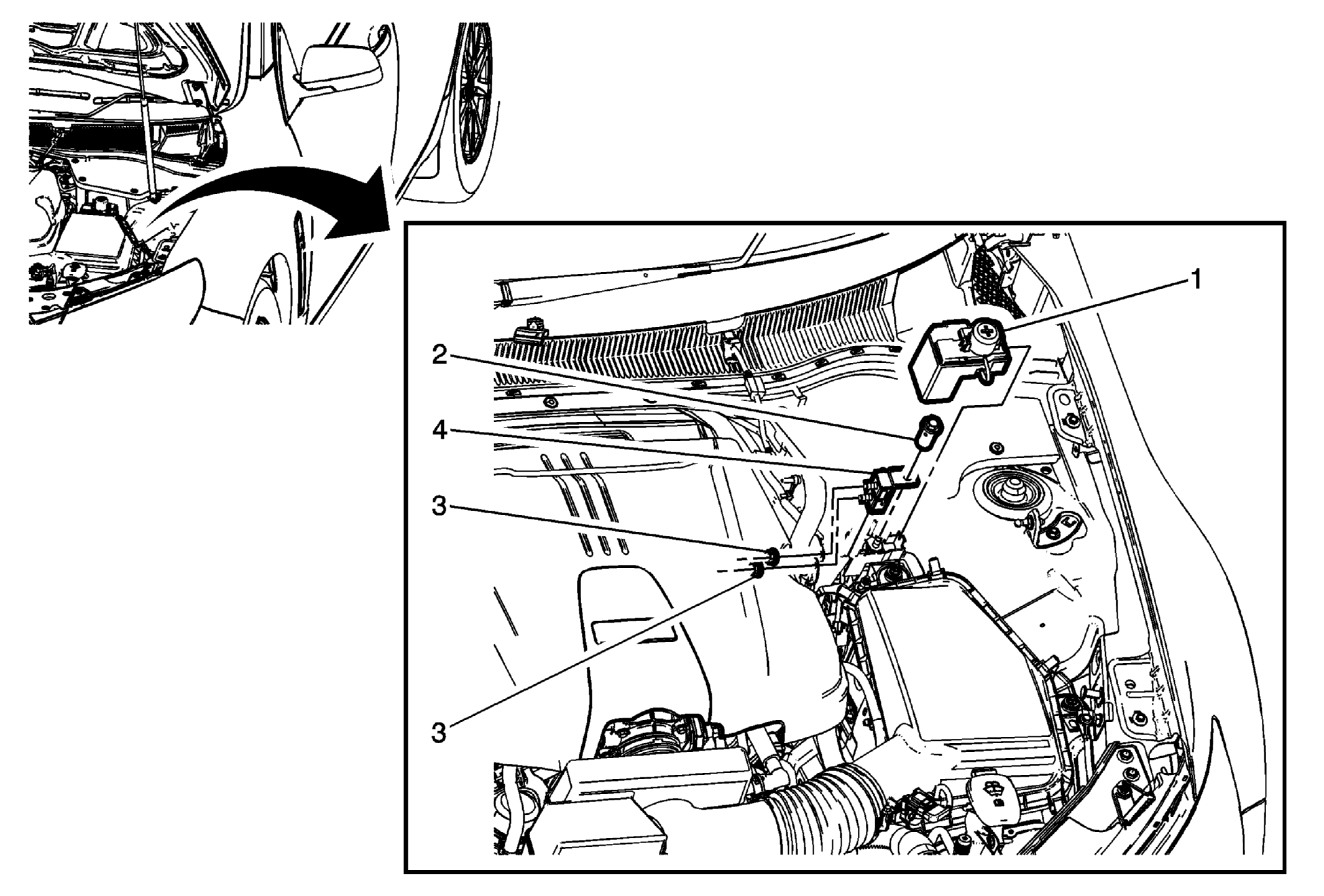

Fig 1: Body Front Wiring Harness Fuse Block
GM3228177Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Replacement .
1 Body Front Wiring Harness Fuse Block Cover
Procedure
Carefully release the three retainer tabs.
2 Body Front Wiring Harness Fuse Block Junction Block Stud
CAUTION:

Refer to Fastener Caution .


Tighten
15 N.m (11 lb ft)
3 Body Front Wiring Harness Fuse Block Positive Battery Cable Nut (Qty: 2)
Tighten
9 N.m (80 lb in)
4 Body Front Wiring Harness Fuse Block
