Passenger Compartment Components

Passenger Compartment Components

Items
1: B28D Door Ajar Switch - Driver B28D Door Ajar Switch - Driver
2: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
3: B80 Park Brake Switch B80 Park Brake Switch
4: F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
5: F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver

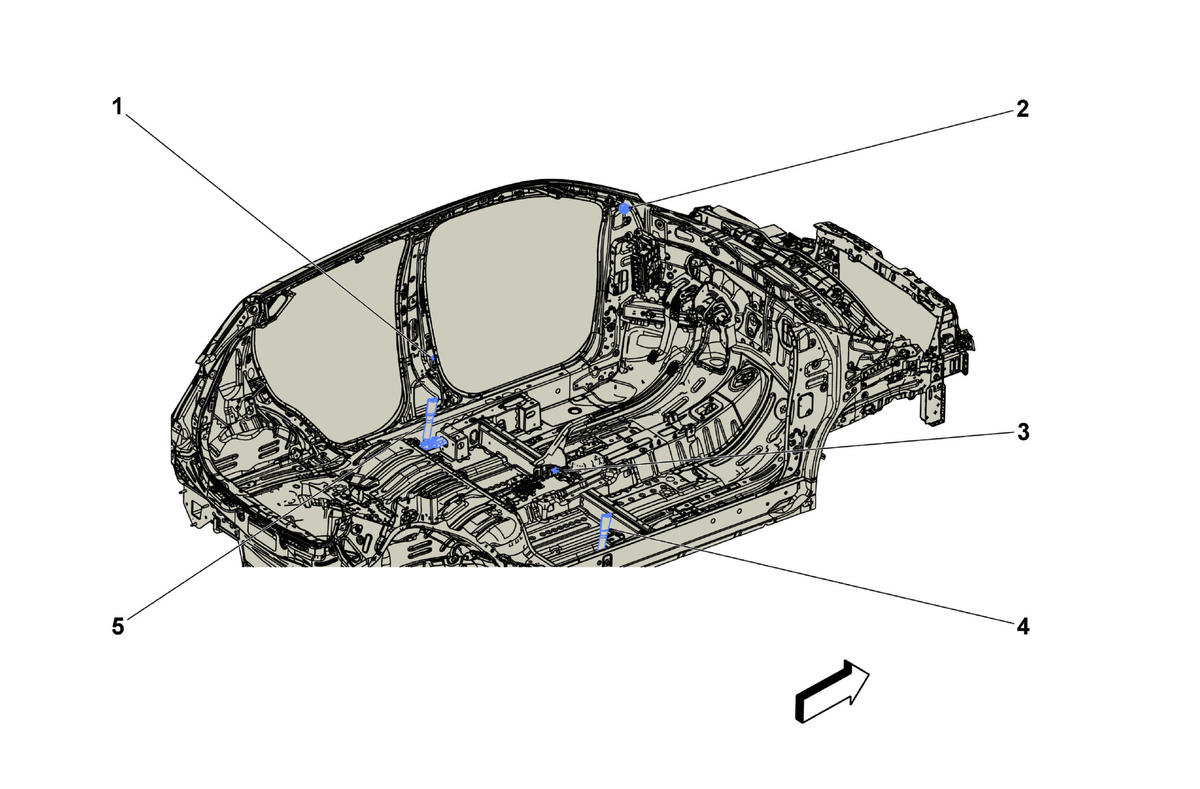

Fig 1: Passenger Compartment Components
GM4040508Courtesy of GENERAL MOTORS COMPANY
