Engine Components - Left Rear (L5Q)

Engine Components - Left Rear (L5Q)

Items
1: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor
2: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
3: B75C Multifunction Intake Air Sensor (L5Q or LV7) B75C Multifunction Intake Air Sensor
4: Q38 Throttle Body Q38 Throttle Body
5: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
6: G13 Generator G13 Generator X1G13 Generator X2
7: M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2
8: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor

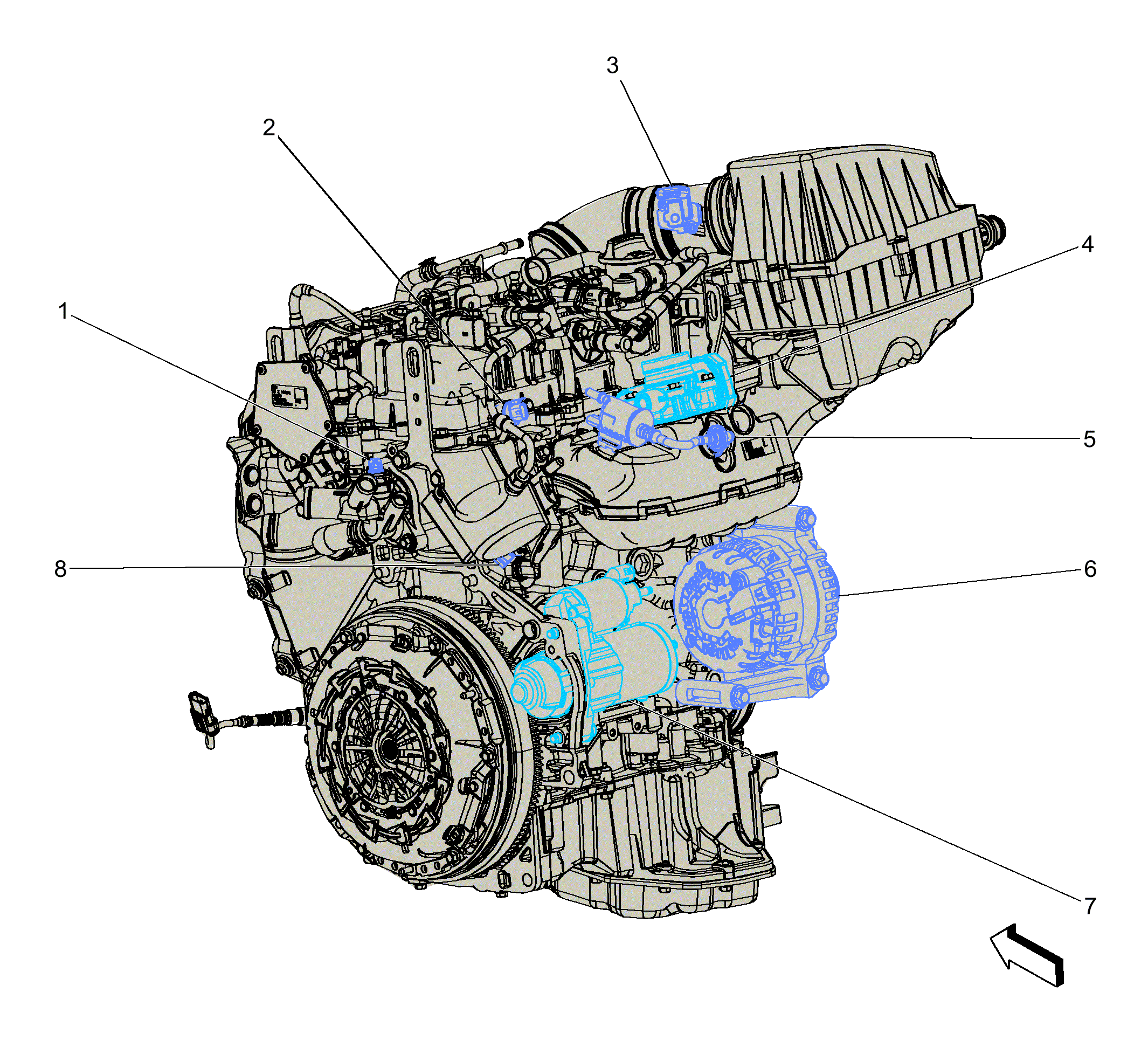

Fig 1: Engine Components - Left Rear (L5Q)
GM4171030Courtesy of GENERAL MOTORS COMPANY
