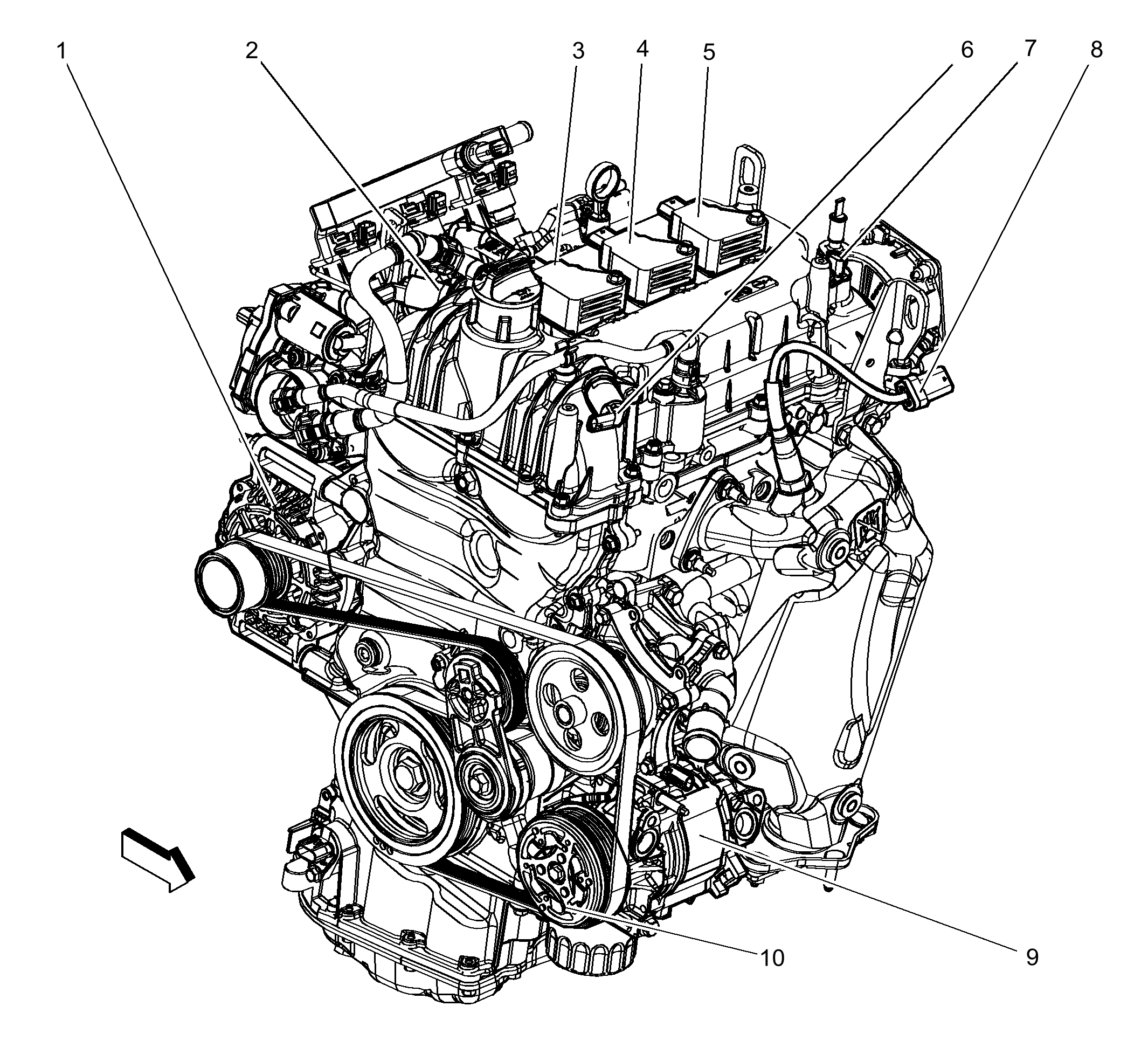

Engine Components - Right Front (L5Q)
Engine Components - Right Front (L5Q)
| Items |
|---|
| 1: G13 Generator G13 Generator X1G13 Generator X2 |
| 2: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 3: T8A Ignition Coil 1 (LQ5 or LV7) T8A Ignition Coil 1 (L5Q/LV7) |
| 4: T8B Ignition Coil 2 (LQ5 or LV7) T8B Ignition Coil 2 (L5Q/LV7) |
| 5: T8C Ignition Coil 3 (LQ5 or LV7) T8C Ignition Coil 3 (L5Q/LV7) |
| 6: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 7: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 8: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 9: G1 A/C Compressor G1 A/C Compressor |
| 10: Q2 A/C Compressor Clutch |
