Power, Ground, Serial Data, Antenna and Audio Input

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

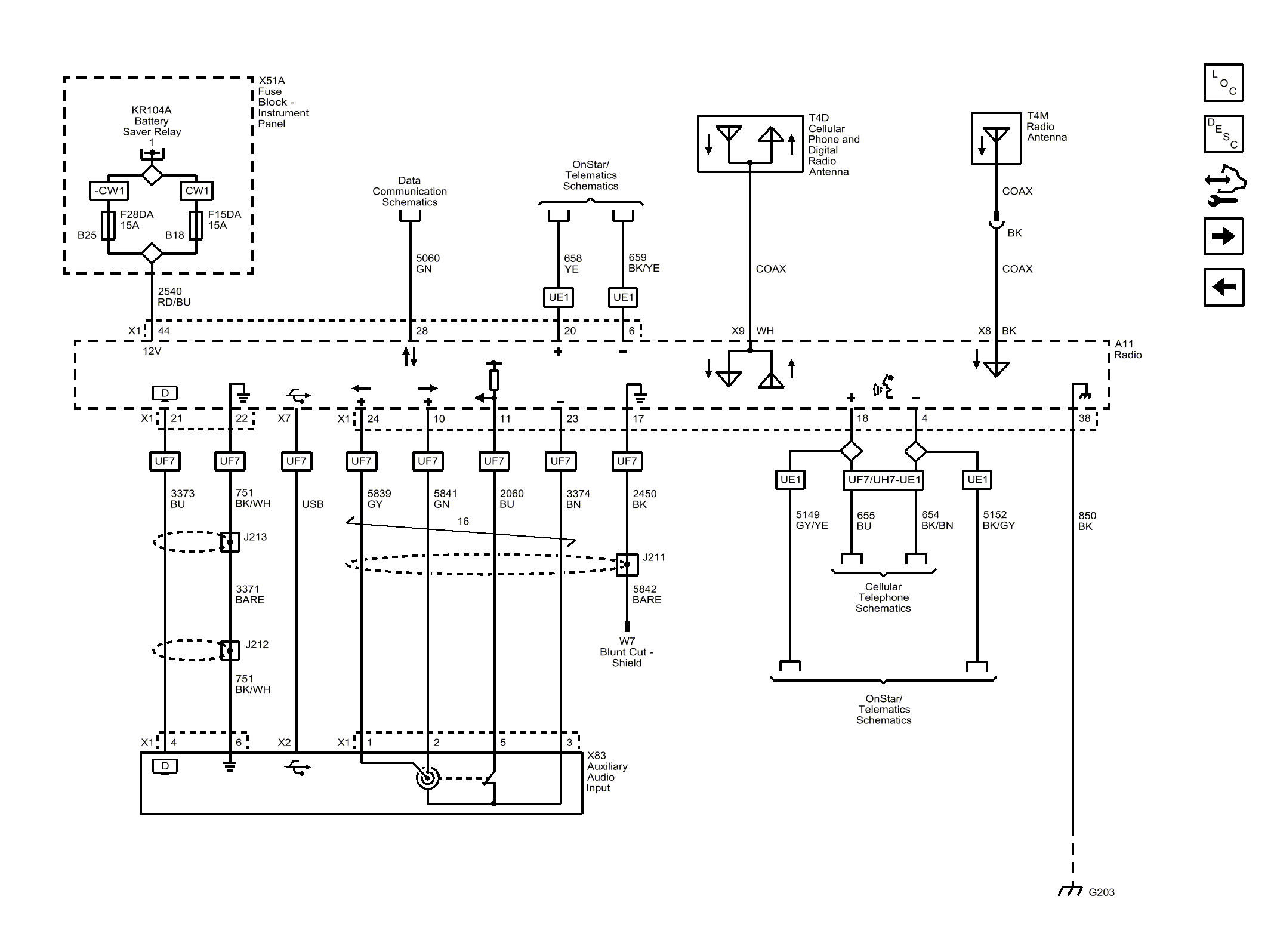

Fig 1: Power, Ground, Serial Data, Antenna and Audio Input
GM3680682Courtesy of GENERAL MOTORS COMPANY
