Engine Components - Lower Rear

Engine Components - Lower Rear

Items
1: B68 Knock Sensor (L5Q or LV7) B68 Knock Sensor L5QB68 Knock Sensor LV7
2: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor

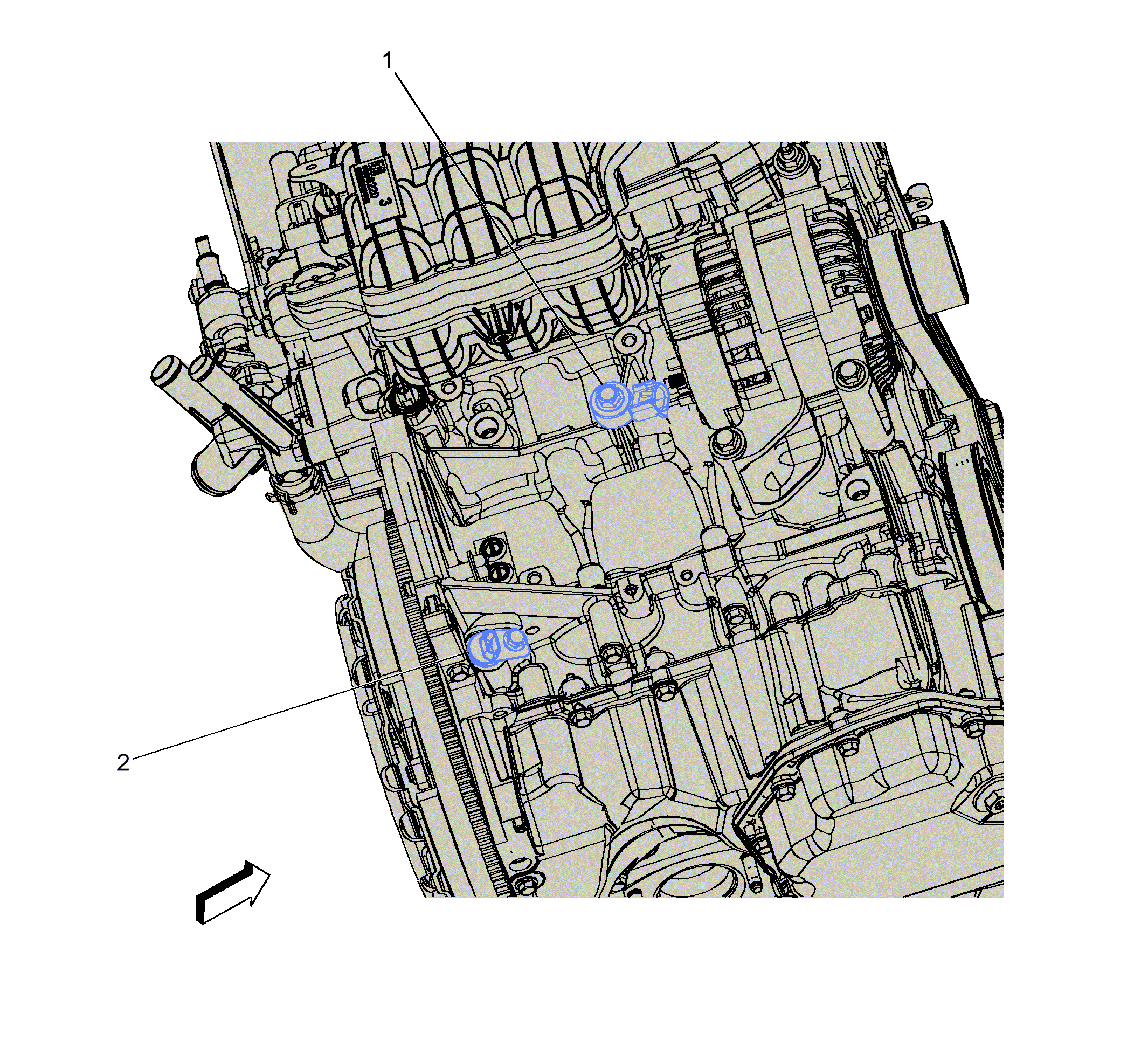

Fig 1: Engine Components - Lower Rear
GM4040249Courtesy of GENERAL MOTORS COMPANY
