Automatic Level Control (Z95)

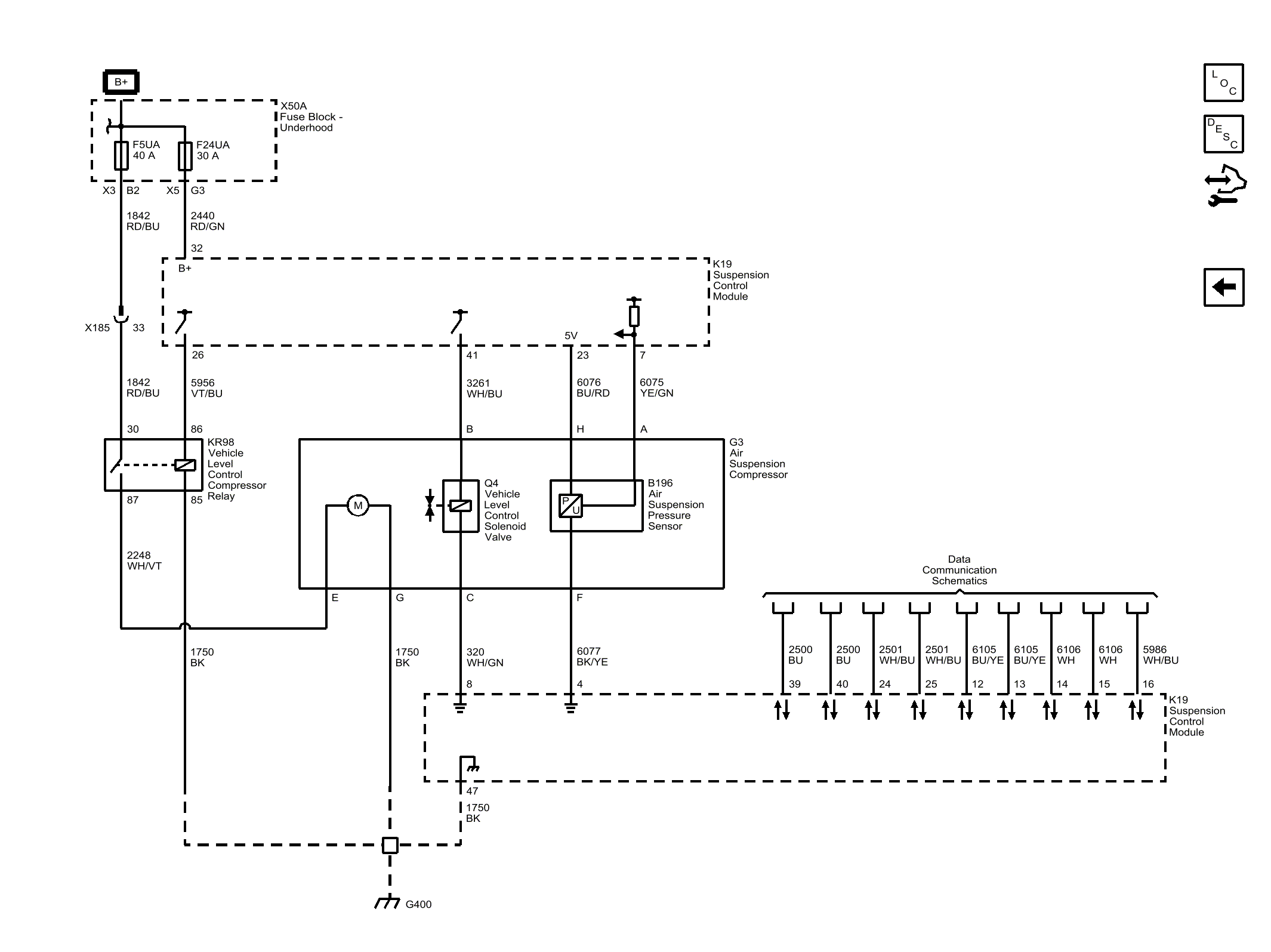

Fig 1: Automatic Level Control (Z95)
Courtesy of GENERAL MOTORS COMPANY
