Accessory AC and DC Power Control Module Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

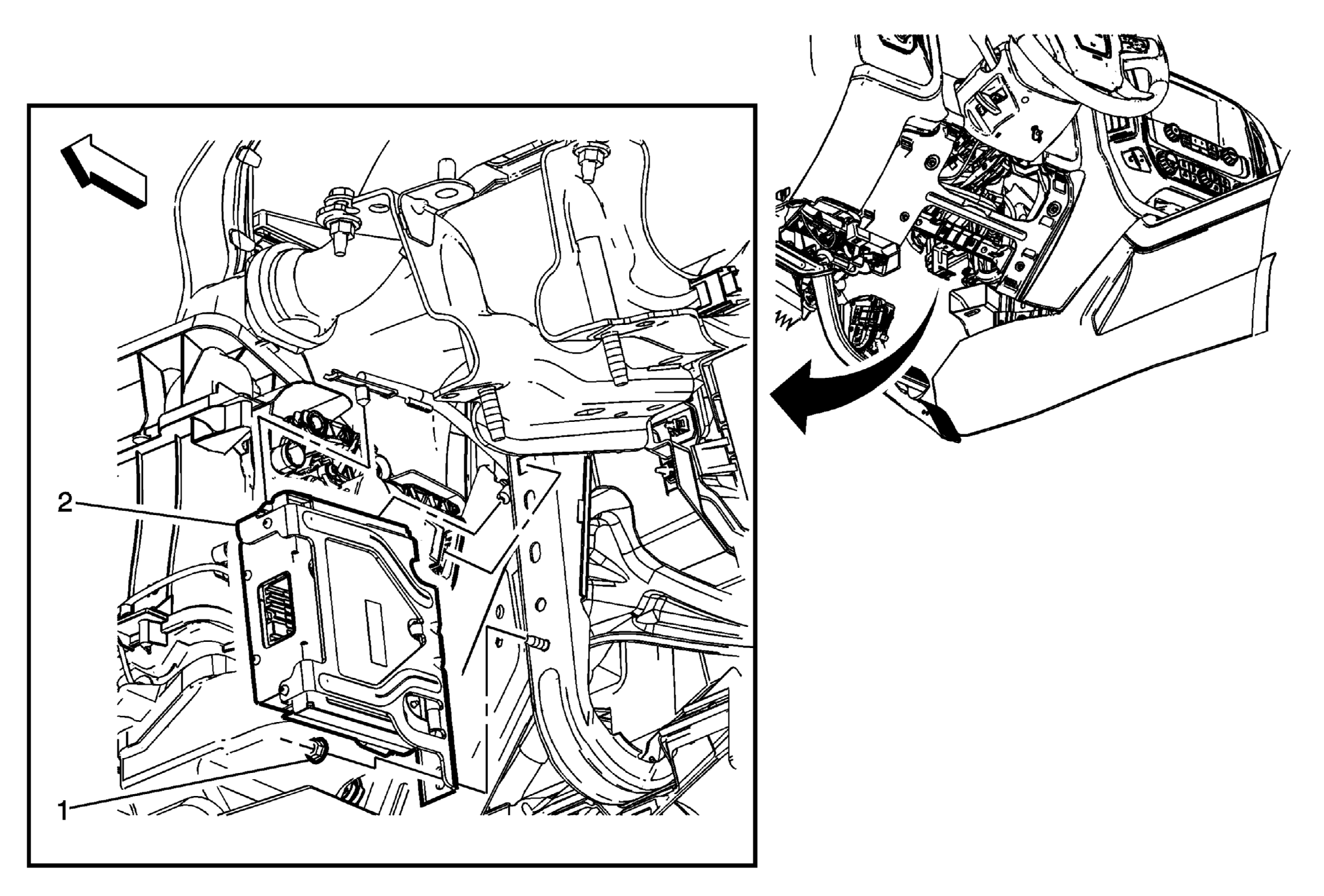

Fig 1: Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac) . Remove the front floor air outlet duct - left. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Utilities)Floor Front Air Outlet Duct Replacement - Left Side (Z75) .
1	Accessory AC and DC Power Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac) .
Remove the front floor air outlet duct - left. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Utilities)Floor Front Air Outlet Duct Replacement - Left Side (Z75) .

Accessory AC and DC Power Control Module Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Accessory AC and DC Power Control Module

Procedure

Disconnect the electrical connector.
For programming and set up, refer to Control Module References .
