Rear Seat Belt Intermediate Guide Replacement (3rd Row)

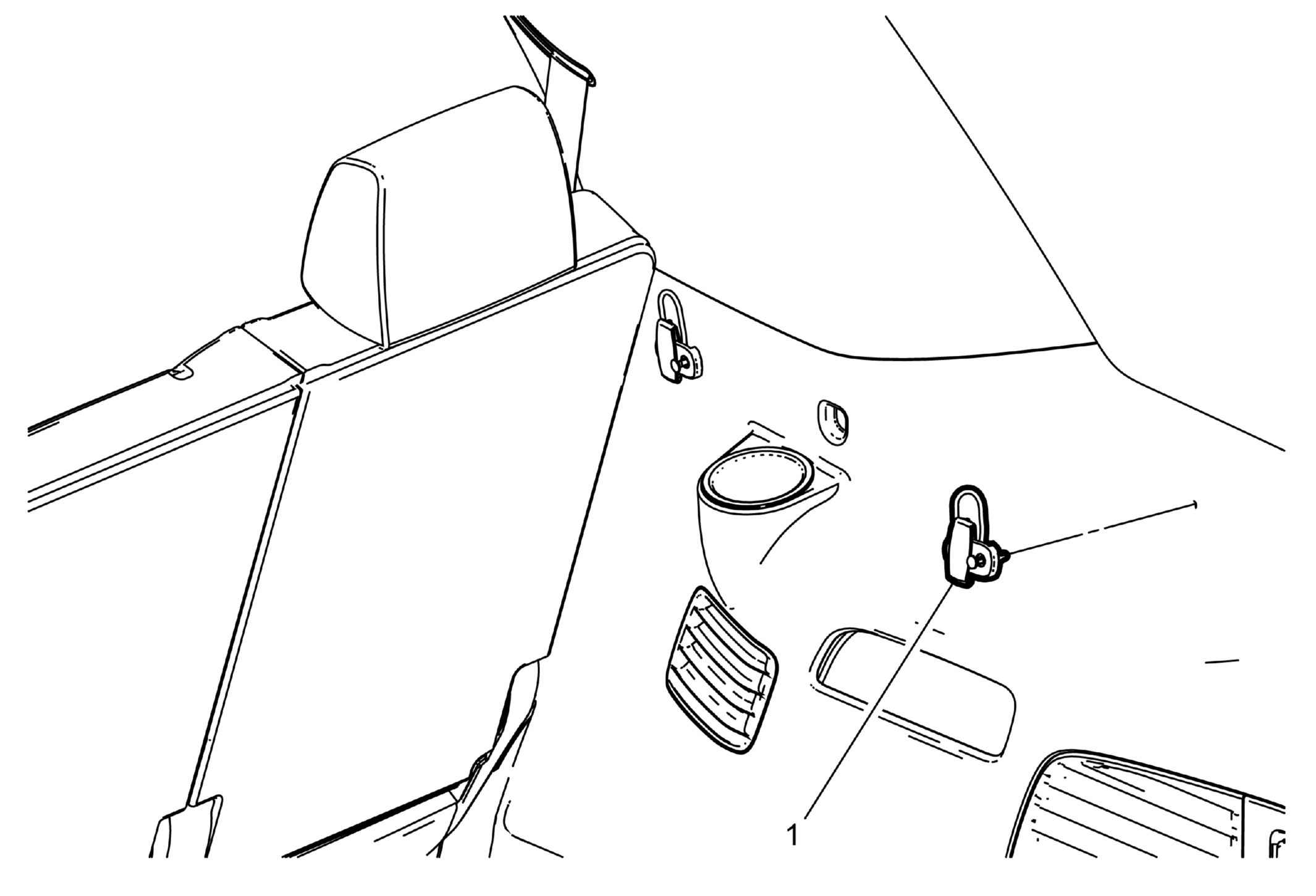

Fig 1: Rear Seat Belt Intermediate Guide (3rd Row)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Seat Belt Intermediate Guide
Procedure
Release the push-in retainer on the guide using a hook type tool to pull outward on the retainer.
