HVAC Components (Trax, 2 of 2)

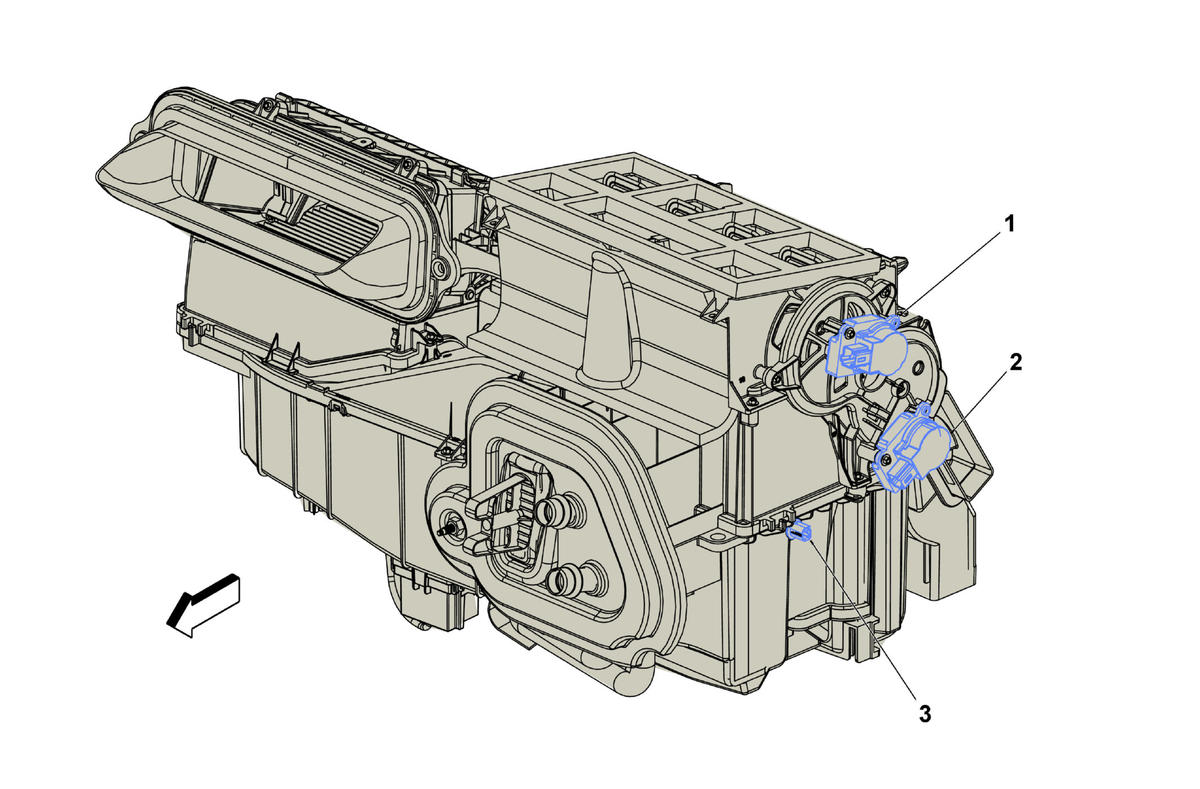

Fig 1: HVAC Components (Trax, 2 of 2)
GM3655027Courtesy of GENERAL MOTORS COMPANY
Callout Items
1 M37 Mode Door Actuator
2 M6L Air Temperature Door Actuator - Left
3 B39 A/C Evaporator Temperature Sensor (C60) B39 A/C Evaporator Temperature Sensor
