Instrument Panel Components (3 of 4)

Instrument Panel Components (3 of 4)

Items
1: T10B Keyless Entry Antenna - Instrument Panel Compartment T10B Keyless Entry Antenna - Instrument Panel Compartment
2: X51A Fuse Block - Instrument Panel
3: C3 Telematics Communication Interface Control Module Battery C3 Telematics Communication Interface Control Module Battery
4: X84 Data Link Connector X84 Data Link Connector
5: T15 Navigation Antenna Signal Splitter T15 Navigation Antenna Signal Splitter X1

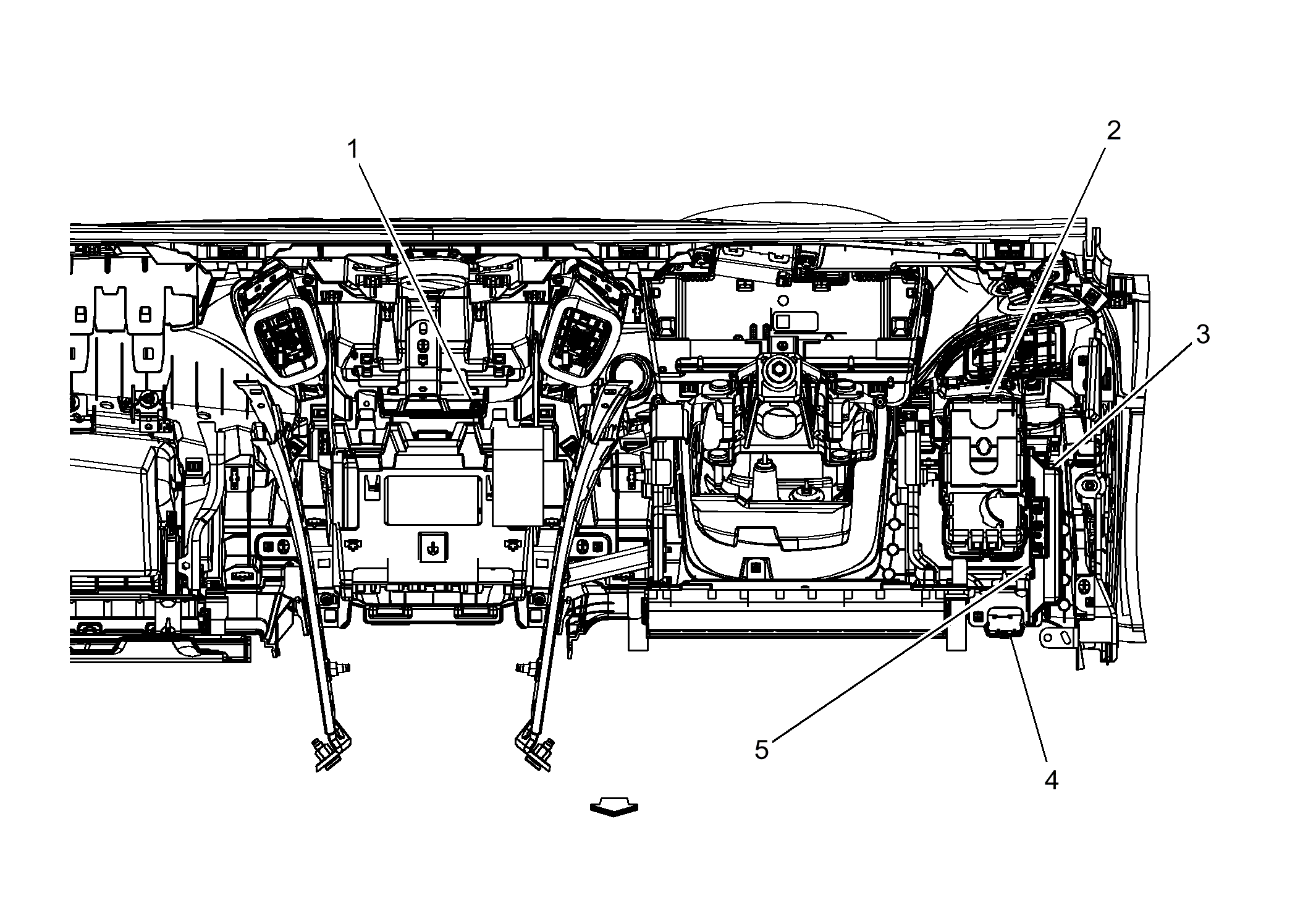

Fig 1: Instrument Panel Components (3 of 4)
GM4169581Courtesy of GENERAL MOTORS COMPANY
