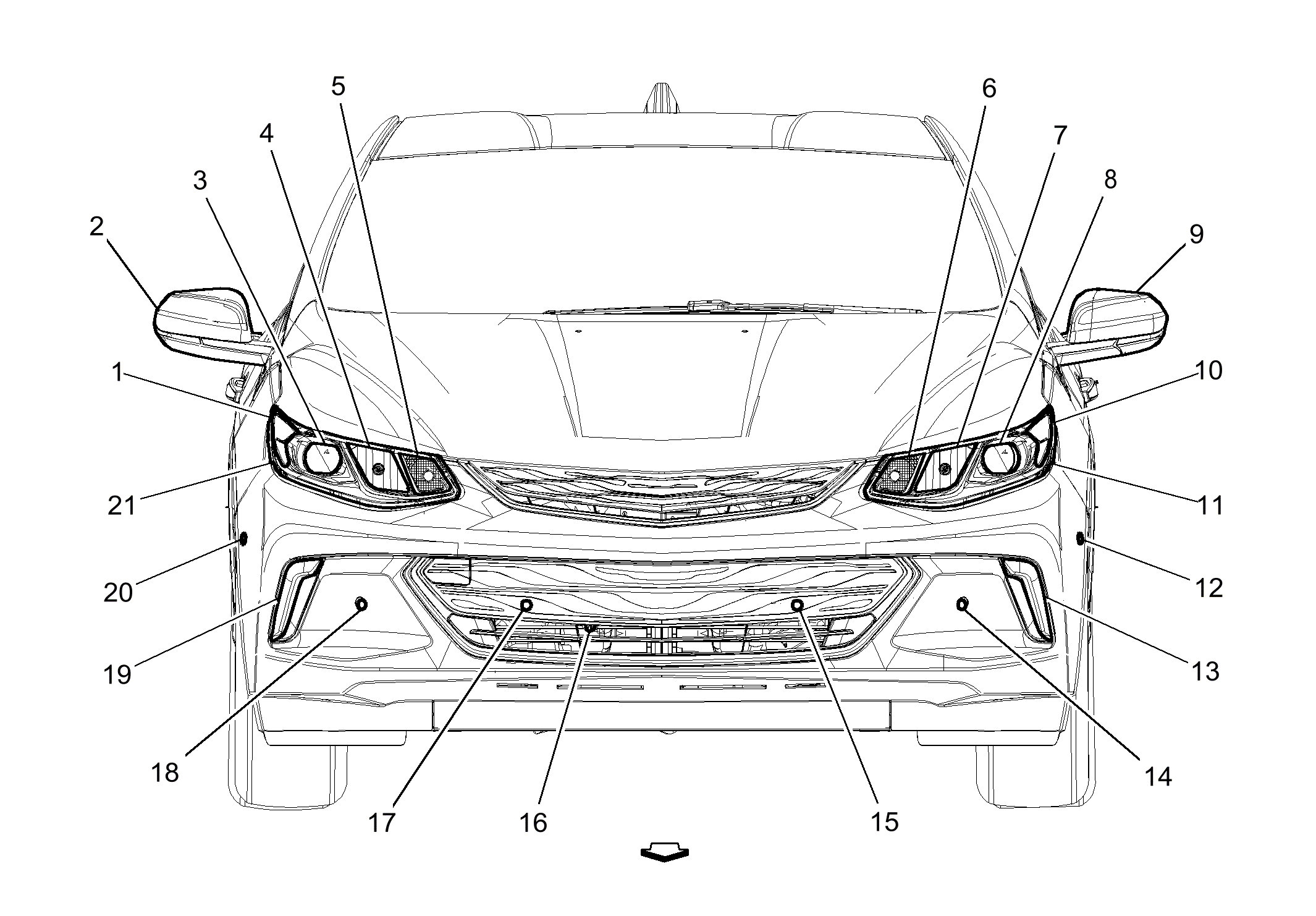

Front of Vehicle Components (1 of 2)
Front of Vehicle Components (1 of 2)
| Items |
|---|
| 1: E2RF Side Marker Lamp - Right Front |
| 2: A9B Outside Rearview Mirror - Passenger |
| 3: E4H Headlamp - Right Low Beam |
| 4: E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam |
| 5: E4RF Turn Signal Lamp - Right Front |
| 6: E4LF Turn Signal Lamp - Left Front |
| 7: E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam |
| 8: E4G Headlamp - Left Low Beam |
| 9: A9A Outside Rearview Mirror - Driver |
| 10: E2LF Side Marker Lamp - Left Front |
| 11: E13LA Headlamp Assembly - Left |
| 12: B166LF Advanced Parking Assist Side Object Sensor - Left Front (UKC) B166LF Advanced Parking Assist Side Object Sensor - Left Front |
| 13: E4AC Park/Daytime Running Lamp - Left E4AC Park/Daytime Running Lamp - Left |
| 14: B78A Front Object Sensor - Left Outer (UFQ) B78A Front Object Sensor - Left Outer |
| 15: B78C Front Object Sensor - Left Middle (UFQ) B78C Front Object Sensor - Left Middle |
| 16: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 17: B78D Front Object Sensor - Right Middle (UFQ) B78D Front Object Sensor - Right Middle |
| 18: B78B Front Object Sensor - Right Outer (UFQ) B78B Front Object Sensor - Right Outer |
| 19: E4AD Park/Daytime Running Lamp - Right E4AD Park/Daytime Running Lamp - Right |
| 20: B166RF Advanced Parking Assist Side Object Sensor - Right Front (UKC) B166RF Advanced Parking Assist Side Object Sensor - Right Front |
| 21: E13RA Headlamp Assembly - Right |
