Passenger Presence Seat Belt Sensor Replacement

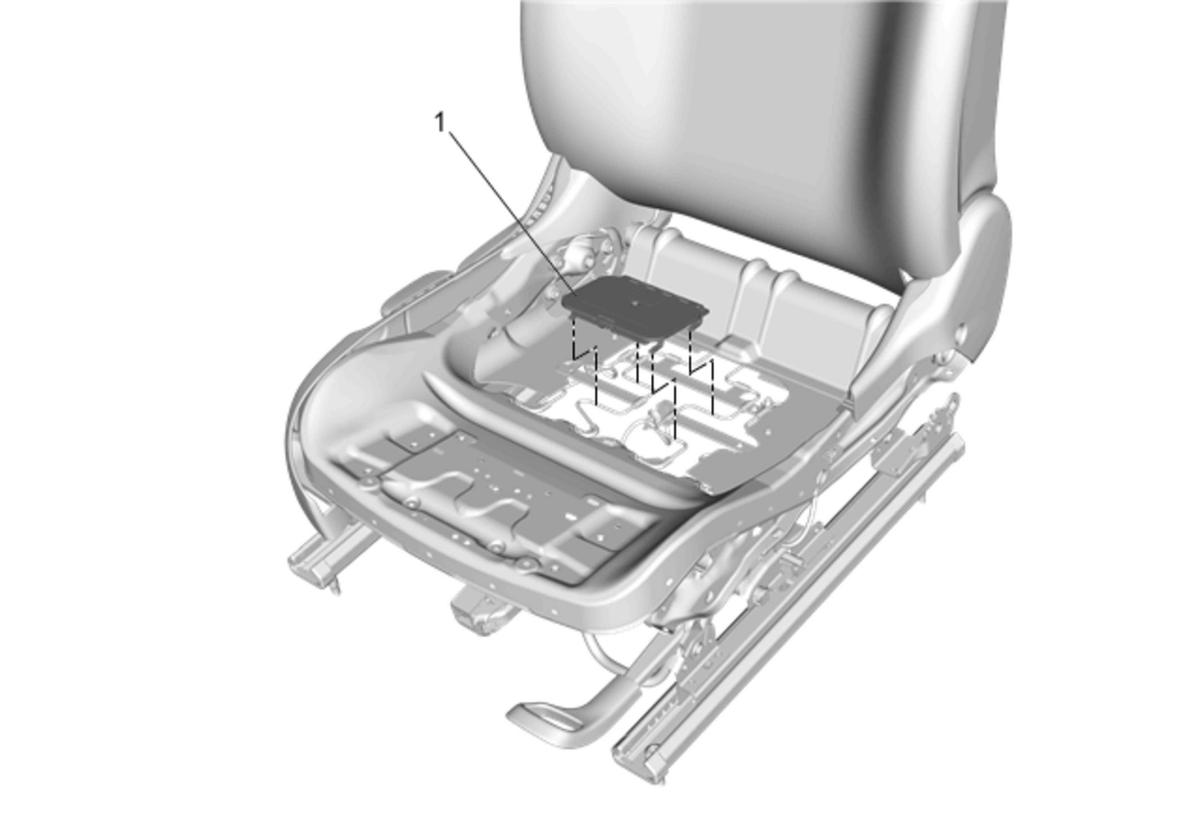

Fig 1: Passenger Presence Seat Belt Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement Front Seat Cushion Heater Replacement (Korea)Front Seat Cushion Heater Replacement (North America)
1	Passenger Presence Seat Belt Sensor Procedure Disconnect the electrical connector. Perform the passenger presence system re-zeroing. Passenger Presence System Rezeroing

Callout

Component Name

Preliminary Procedures

Passenger Presence Seat Belt Sensor

Procedure

Disconnect the electrical connector.
Perform the passenger presence system re-zeroing. Passenger Presence System Rezeroing
