Collision/Avoidance
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
360 Degree Vision - Power, Ground, Serial Data, and Camera Signals (UVH)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
360 Degree Vision - Power, Ground, Serial Data, and Camera Signals (UVH)

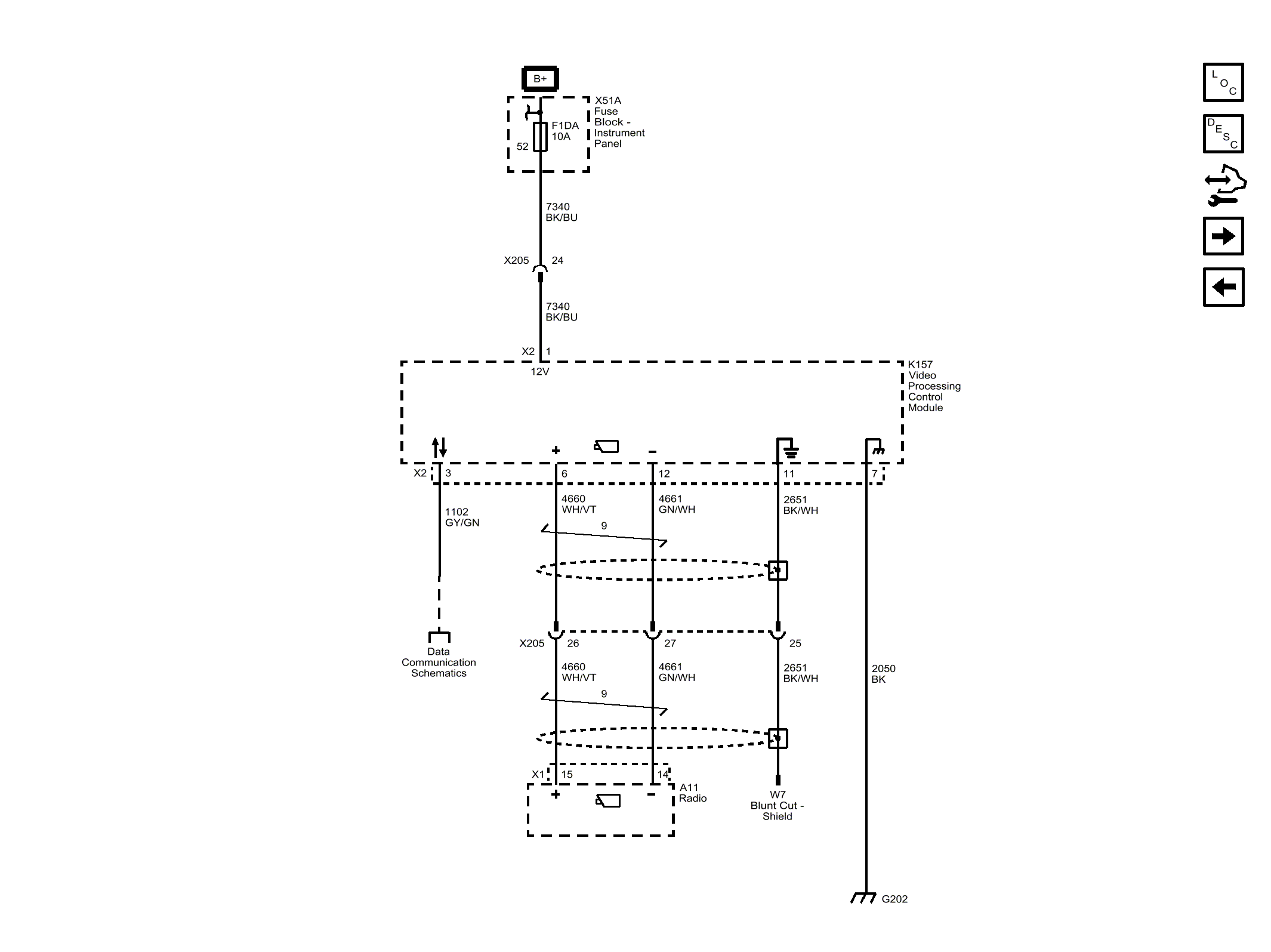

Fig 1: 360 Degree Vision - Power, Ground, Serial Data, and Camera Signals (UVH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
