Side View Driver Information Camera Replacement

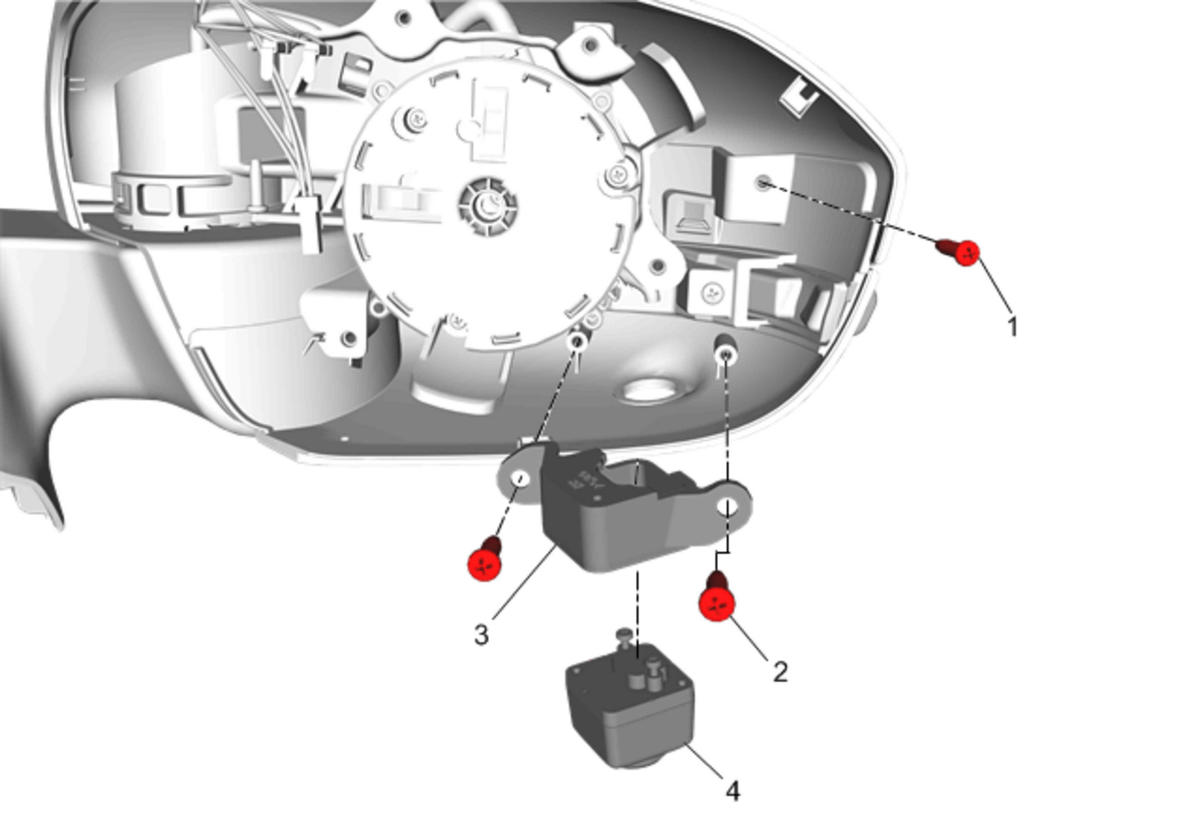

Fig 1: Side View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Outside Rearview Mirror Housing Bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement
1	Outside Rearview Mirror Housing Lower Cover Screw CAUTION: Refer to Fastener Caution Tighten 0.5 N.m (4 lb in)
2	Side View Driver Information Camera Screw (Qty: 2) Tighten 0.8 N.m (7 lb in)
3	Side View Driver Information Camera Bracket Procedure Slide off once camera is removed.
4	Side View Driver Information Camera Procedure Separate the outside rearview mirror housing lower cover from upper cover. Unclip and disconnect the electrical connector.
