Lane Keep Assist (UHX) and Forward Collision Alert (UEU) with (MBM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Lane Keep Assist (UHX) and Forward Collision Alert (UEU) with (MBM)

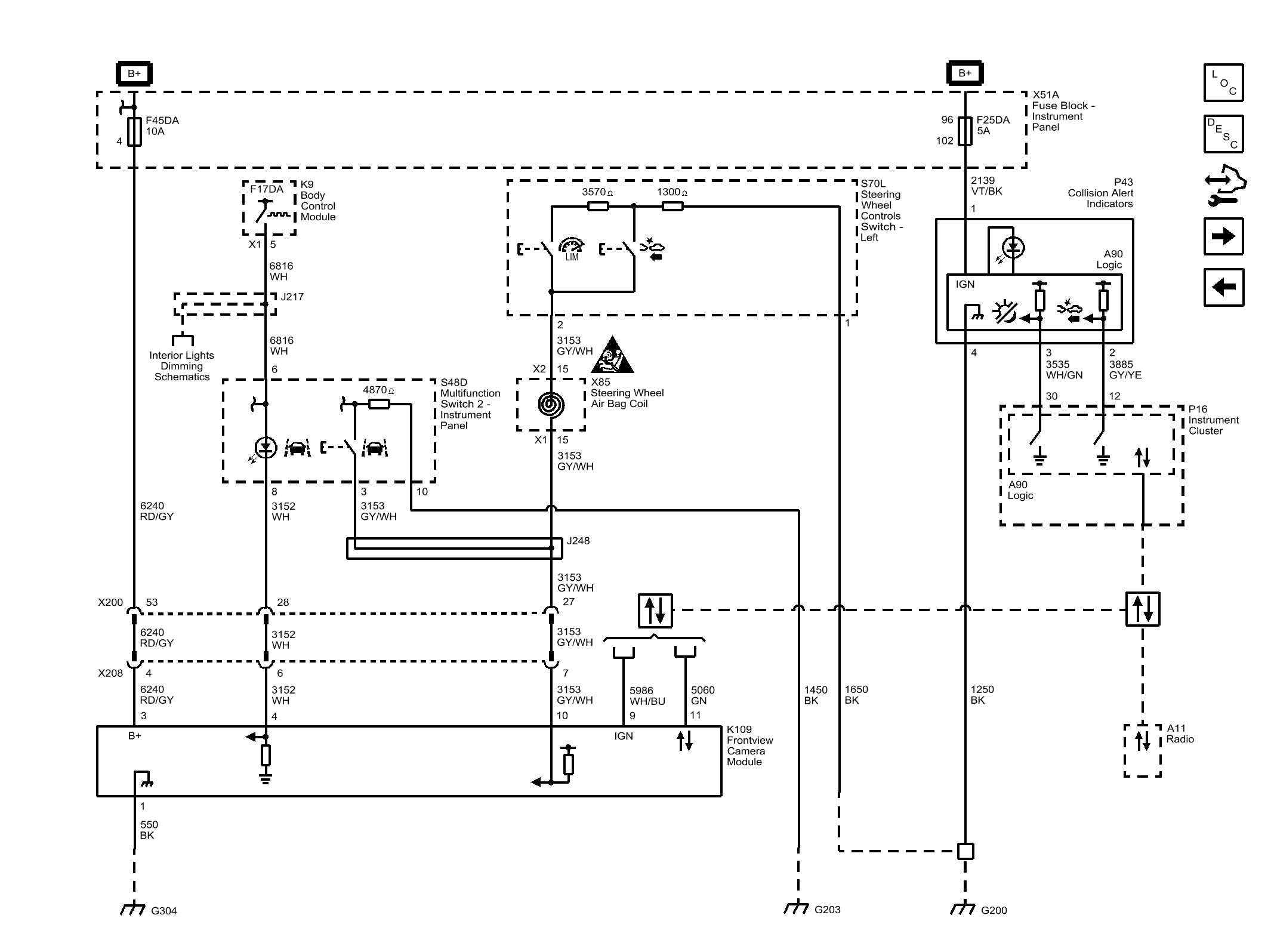

Fig 1: Lane Keep Assist (UHX) and Forward Collision Alert (UEU) with (MBM)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
