Front of Instrument Panel Components

Items
1: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQA)
2: P16 Instrument Cluster P16 Instrument Cluster
3: B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator P36 Battery State of Charge Indicator
4: P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door (UQ3)P19AH Speaker - Right Front Door (UQA)
5: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
6: E1H Accent Lamp - Right Instrument Panel E1H Accent Lamp - Right Instrument Panel
7: X84B Auxiliary Data Connector X84B Auxiliary Data Connector X2
8: A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 A11 Radio X4 A11 Radio X5 A11 Radio X6 A11 Radio X8
9: A20 Radio/HVAC Controls A20 Radio/HVAC Controls
10: S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel
11: X80 Accessory Power Receptacle X80 Accessory Power Receptacle
12: S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel
13: S83 Vehicle On/Off Switch S83 Vehicle On/Off Switch
14: X84 Data Link Connector X84 Data Link Connector
15: S30 Headlamp Switch S30 Headlamp Switch
16: E1G Accent Lamp - Left Instrument Panel E1G Accent Lamp - Left Instrument Panel

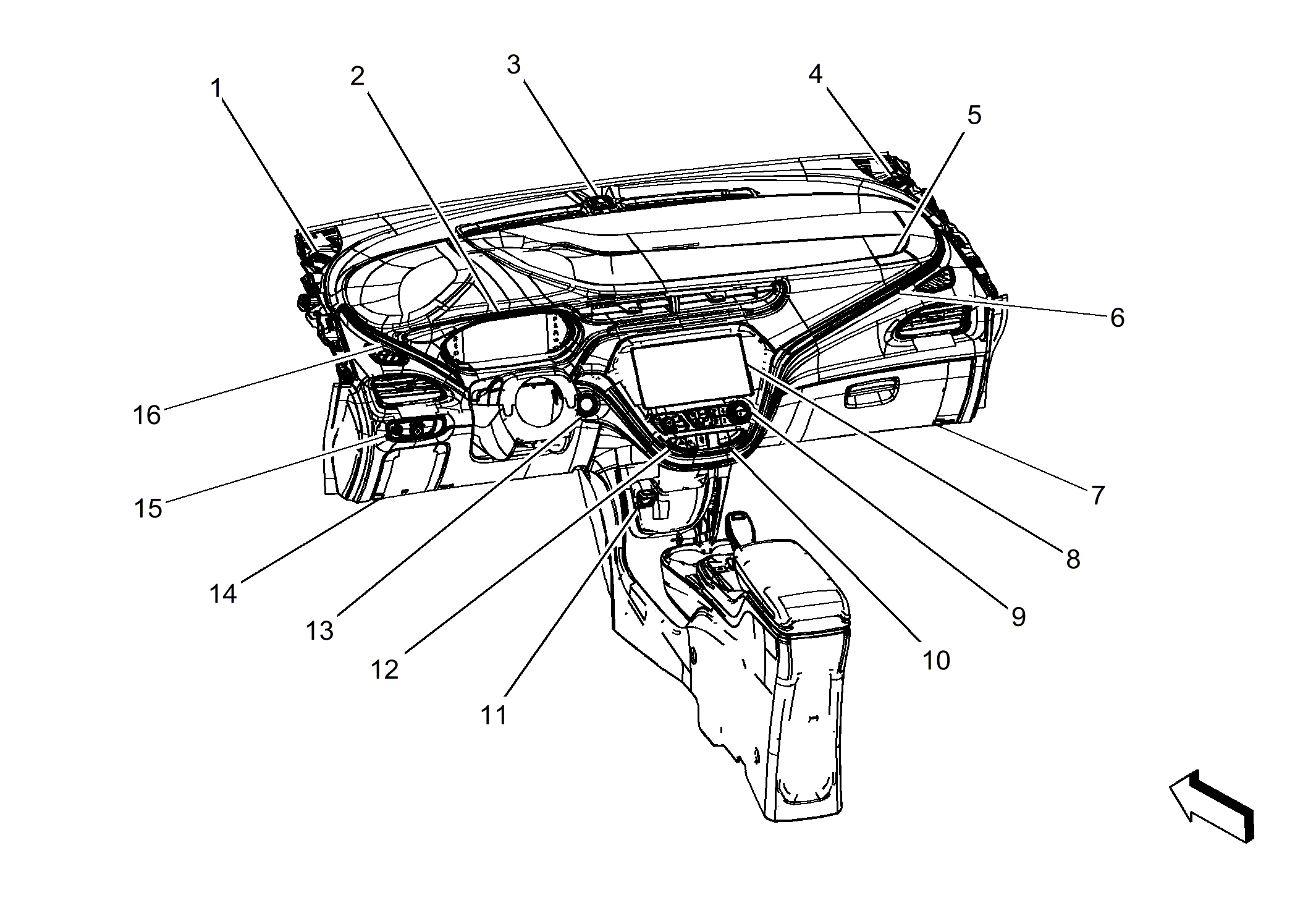

Fig 1: Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
