Rear of Instrument Panel Components

Items
1: S40 Passenger Air Bag Disable Switch S40 Passenger Air Bag Disable Switch (C99)
2: A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 A11 Radio X4 A11 Radio X5 A11 Radio X6 A11 Radio X8
3: K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1 K84 Keyless Entry Control Module X2
4: K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 K56 Serial Data Gateway Module X2
5: P43 Collision Alert Indicators P43 Collision Alert Indicators (UEU/UHX/UHY/UVX)
6: K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
7: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver (AYF)
8: T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
9: K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)K73 Telematics Communication Interface Control Module X5 K73 Telematics Communication Interface Control Module X7
10: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger (AYF)
11: C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)

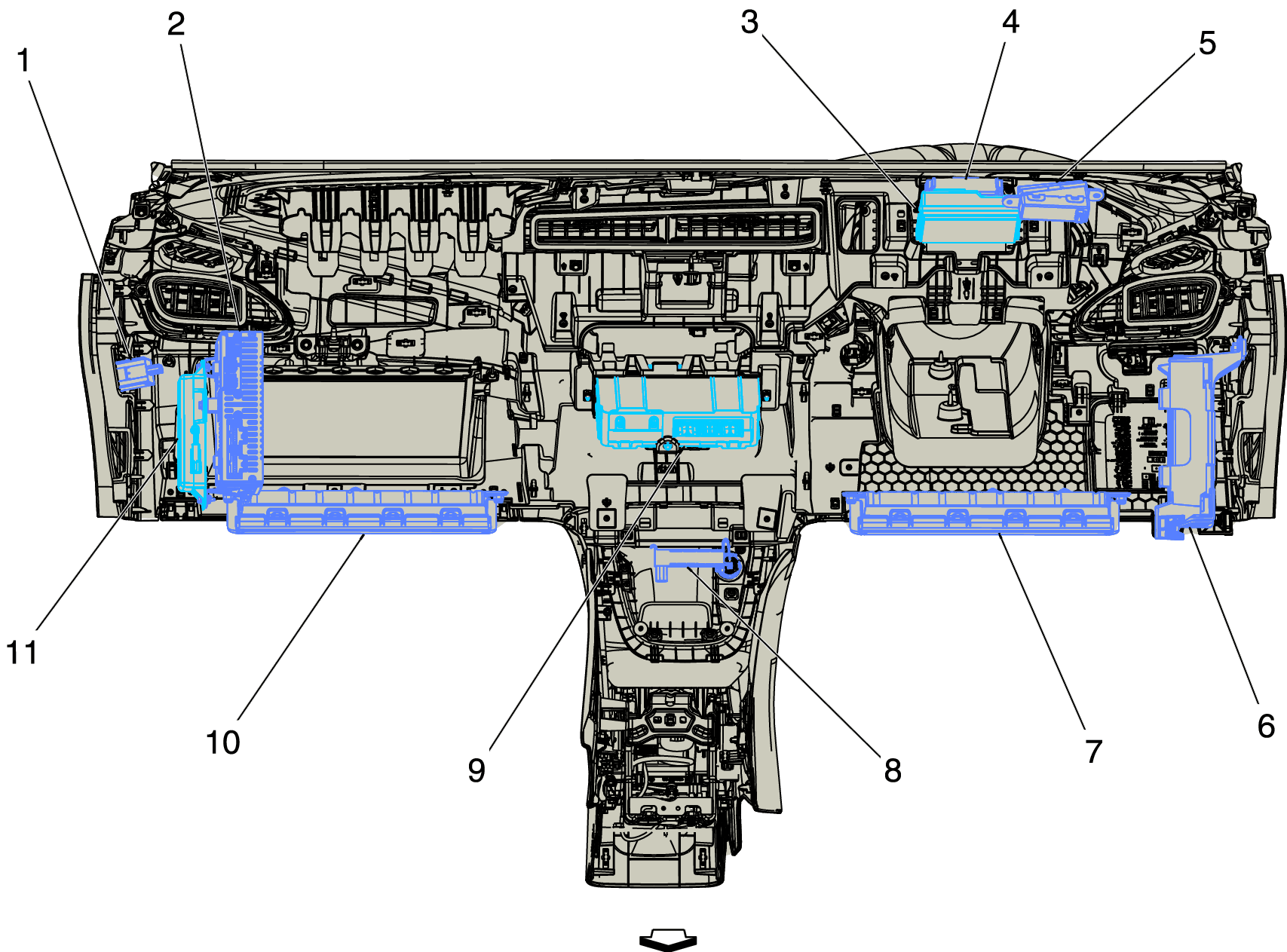

Fig 1: Rear of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
