Transmission Components

Transmission Components

Items
1. B228 Drive Motor Position Sensor
2. B13 Transmission Fluid Temperature Sensor
3. B15 Transmission Internal Mode Switch
4. M15 Drive Motor
5. G5 Transmission Fluid Pump - Electric/Auxiliary G5 Transmission Fluid Pump - Electric/Auxiliary

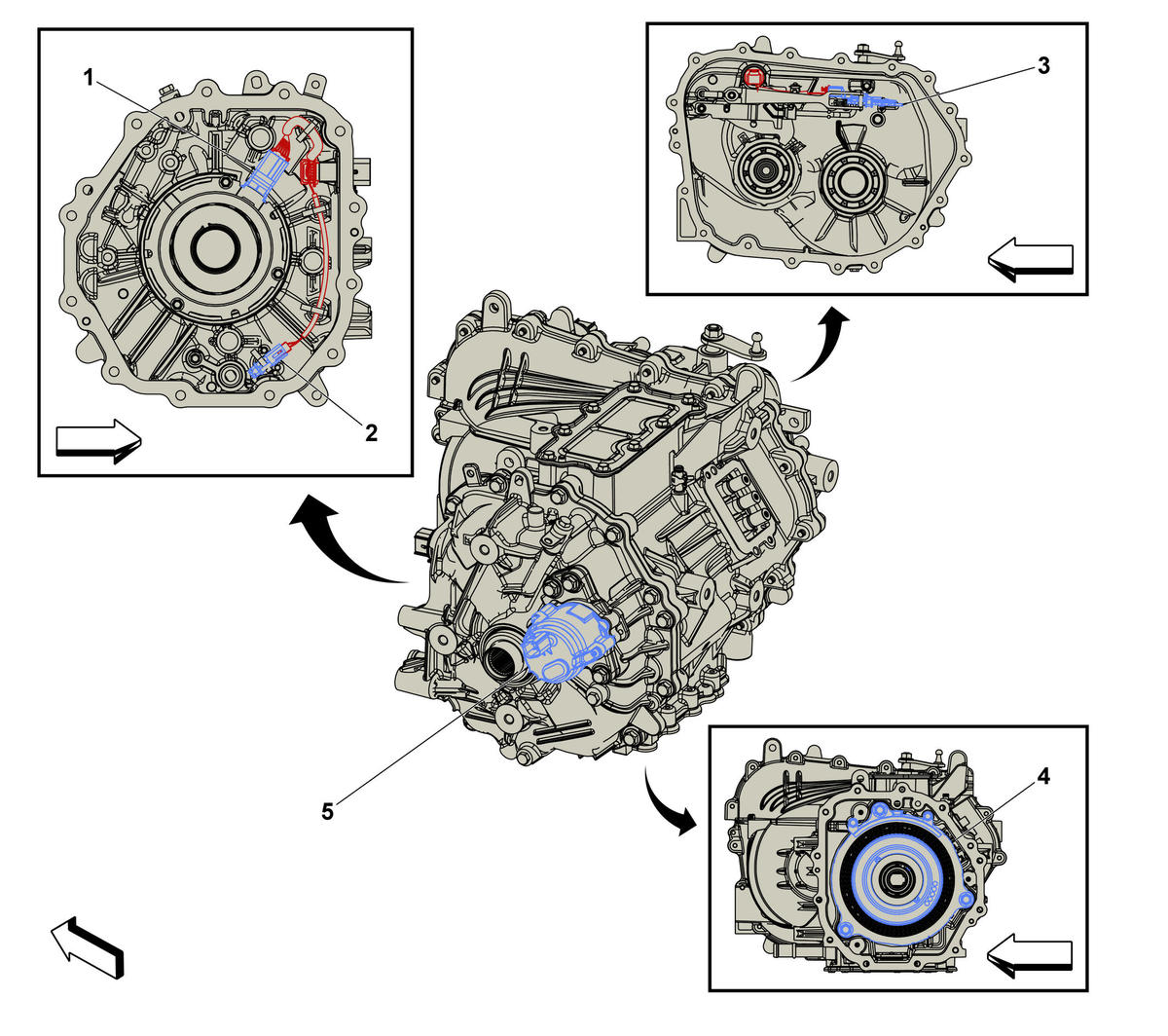

Fig 1: Transmission Components
GM4580405Courtesy of GENERAL MOTORS COMPANY
