Vehicle Performance Camera Bracket Replacement

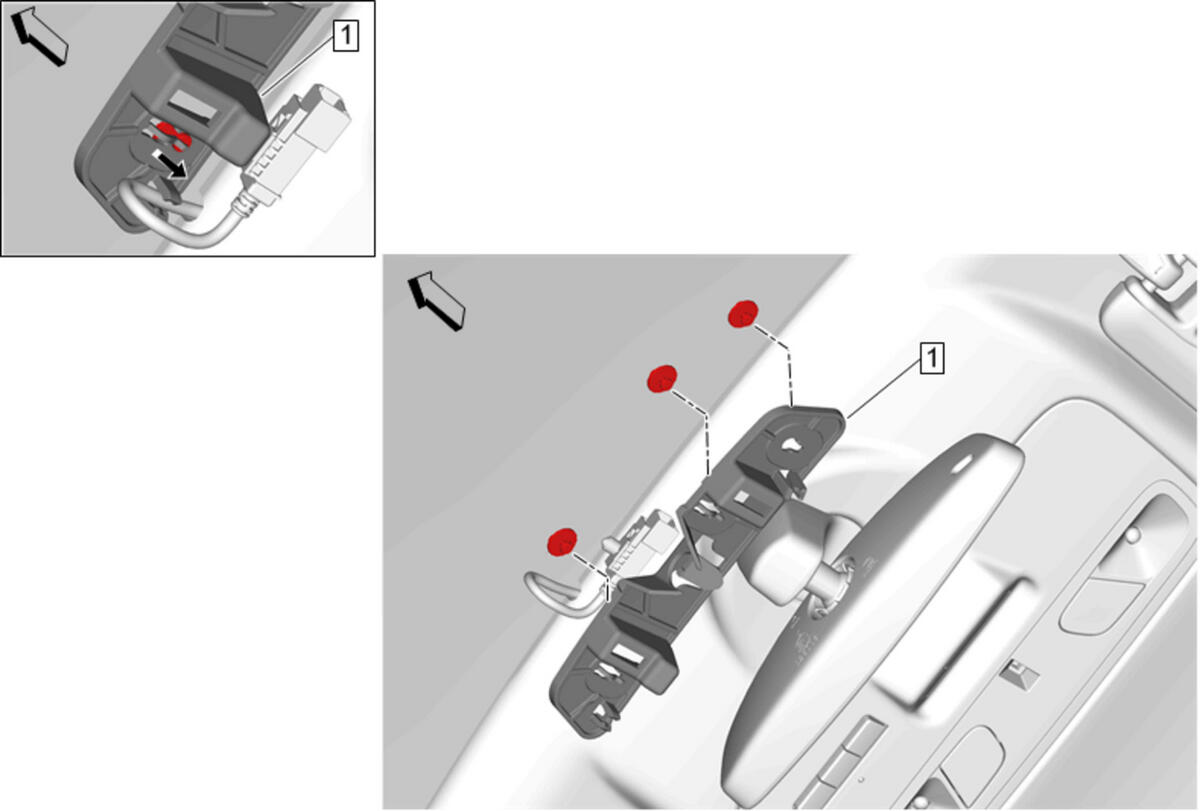

Fig 1: Vehicle Performance Camera Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Vehicle Performance Camera. Refer to Vehicle Performance Camera Replacement
1	Vehicle Performance Camera Bracket Procedure Release the connector from the bracket. Release the retaining tabs and slide the bracket upward to disengage pins, gently pull from windshield. Ensure the inside of the windshield is clean before reinstalling the bracket. NOTE: Do Not remove or service the sensor farm pins.

Callout

Component Name

Preliminary Procedure
Remove Vehicle Performance Camera. Refer to Vehicle Performance Camera Replacement

Vehicle Performance Camera Bracket

Procedure

Release the connector from the bracket.
Release the retaining tabs and slide the bracket upward to disengage pins, gently pull from windshield.
Ensure the inside of the windshield is clean before reinstalling the bracket.

NOTE:

Do Not remove or service the sensor farm pins.
