Human Machine Interface Control Module Replacement

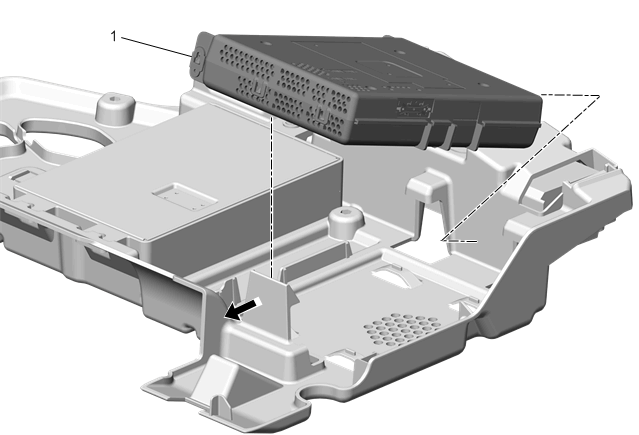

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Multiuse Module Bracket Replacement - Instrument Panel
1	Human Machine Interface Control Module Procedure Release the retaining tabs. Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Human Machine Interface Control Module

Procedure

Release the retaining tabs.
Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures, if required.
