Automatic Transmission Case Components (MGL)

Automatic Transmission Case Components (MGL)

Items
1: B14DB Transmission Intermediate Shaft Speed Sensor 2 (MGL)
2: B15 Transmission Internal Mode Switch (MX0)
3: B14DA Transmission Intermediate Shaft Speed Sensor 1 (MGL)
4: B14A Transmission Output Shaft Speed Sensor (MX0) B14A Transmission Output Shaft Speed Sensor
5: B14C Transmission Input Shaft Speed Sensor (MX0)

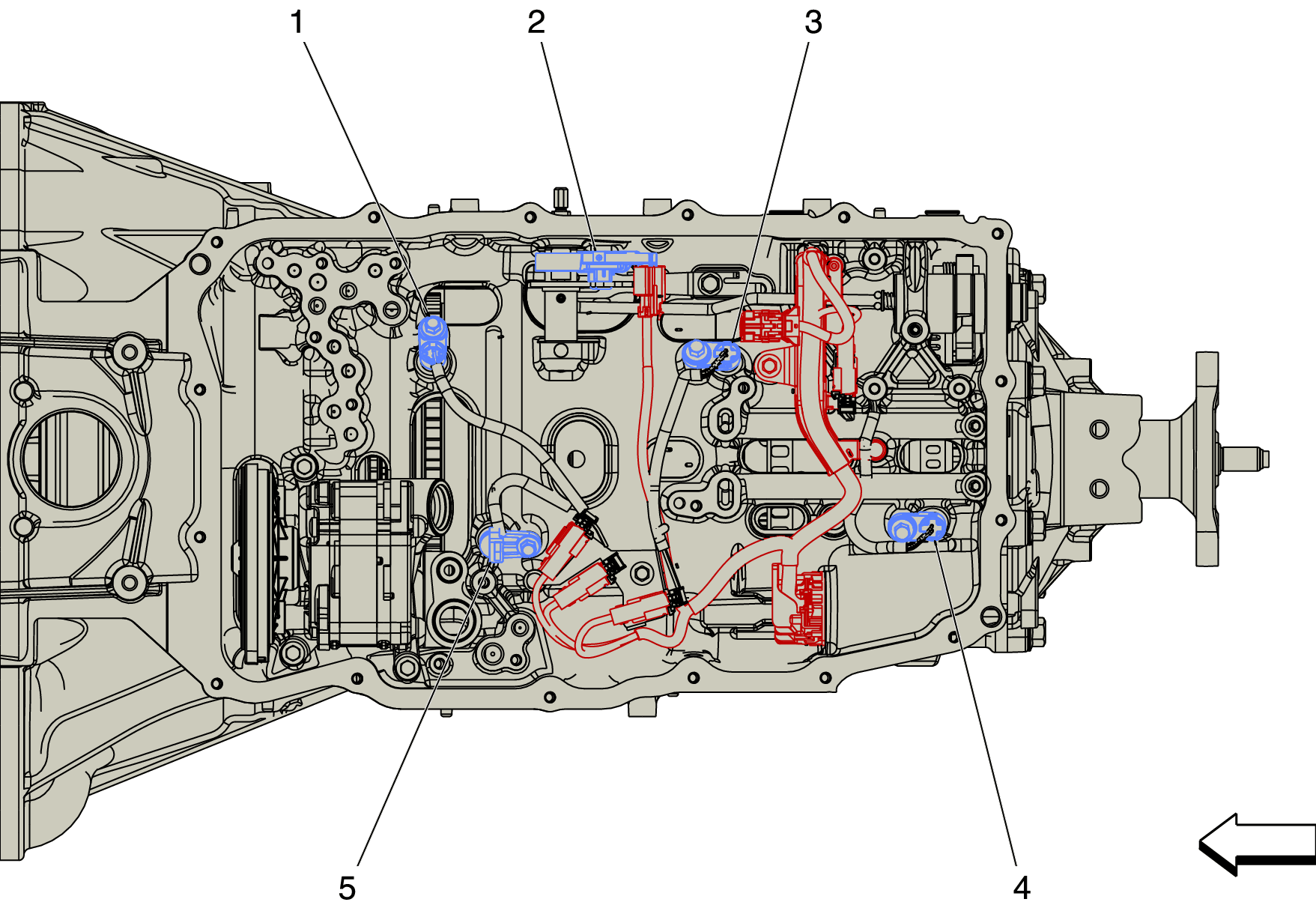

Fig 1: Automatic Transmission Case Components (MGL)
GM4449568Courtesy of GENERAL MOTORS COMPANY
