X50D Fuse Block - Battery X4
|
|

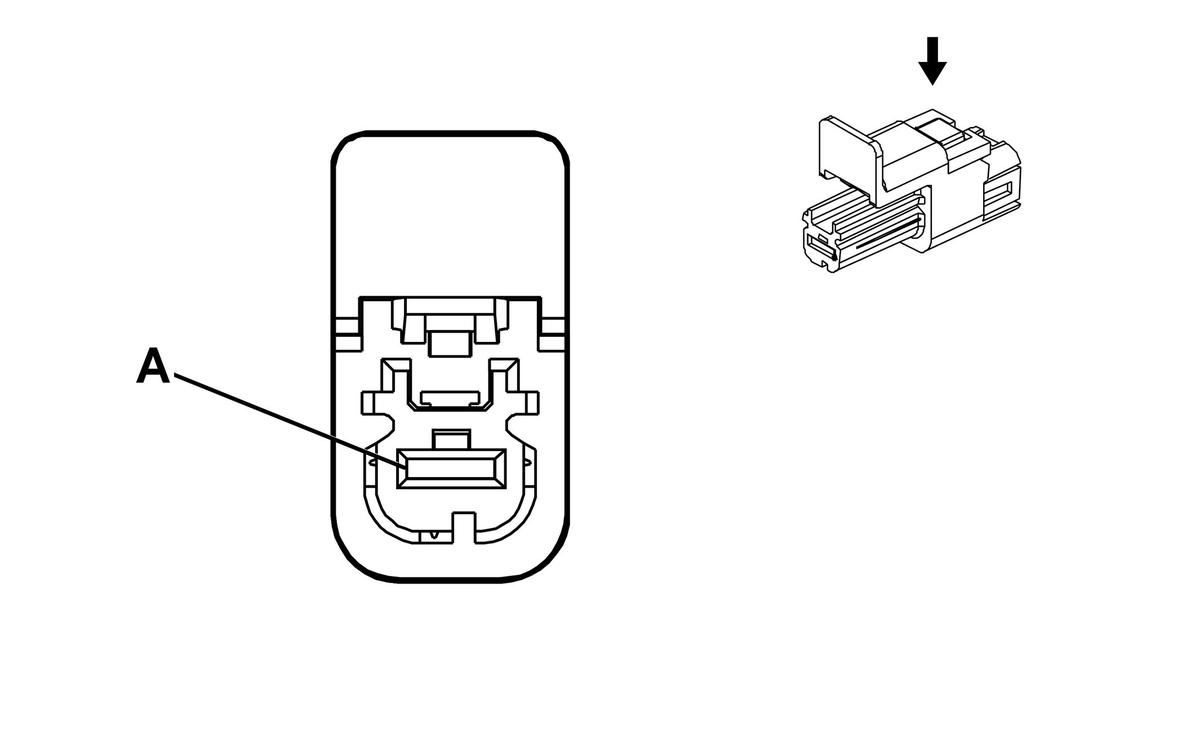

Connector Part Information
- Harness Type: Body
- OEM Connector: 33121434
- Service Connector: 19333351
- Description: 1-Way F 6.3 Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD/VT |
842 |
Battery Positive Voltage |
I |
CM8 |
