Center Console Components

Center Console Components

Items
1: S26 Hazard Warning Switch S26 Hazard Warning Switch
2: S126 Drive Mode Select Switch S126 Drive Mode Select Switch
3: X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console
4: E1AC Accent Lamp - Center Console Cupholder (C70) E1AC Accent Lamp - Center Console Cupholder
5: T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module
6: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2
7: K89 Immobilizer Control Module K89 Immobilizer Control Module
8: S91 Park Brake Control Switch S91 Park Brake Control Switch
9: P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator

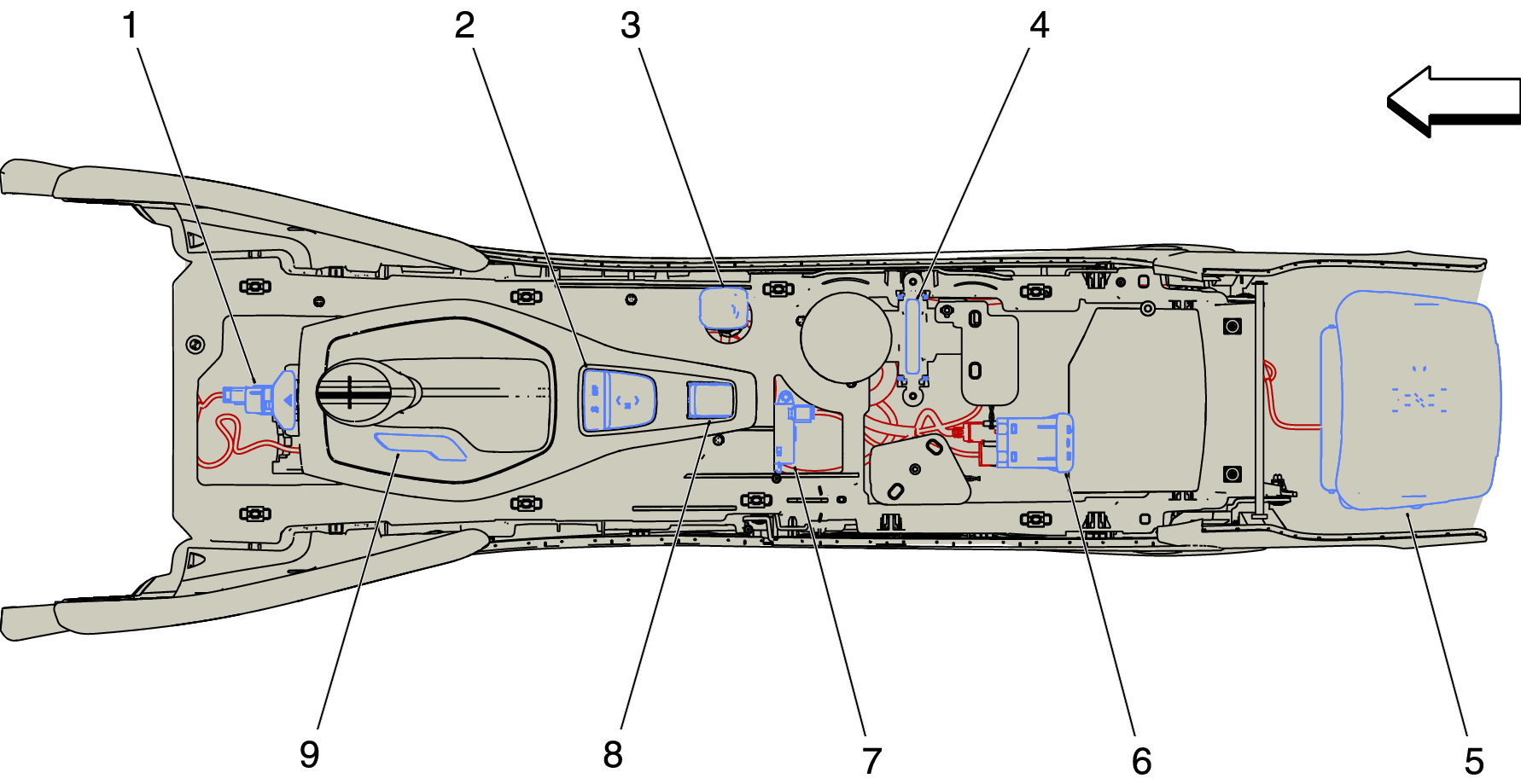

Fig 1: Center Console Components
GM4297422Courtesy of GENERAL MOTORS COMPANY
