Instrument Panel Components - Front

Instrument Panel Components - Front

Items
1: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQ3)P19H Speaker - Left Front Tweeter (UQA)
2: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
3: P16 Instrument Cluster P16 Instrument Cluster X1P16 Instrument Cluster X2P16 Instrument Cluster X3
4: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
5: P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (UQA)
6: P17 Info Display Module P17 Info Display Module X1 (IO5/IO6)P17 Info Display Module X1 (IOB)P17 Info Display Module X2P17 Info Display Module X3E1G Accent Lamp - Left Instrument Panel (-C70)E1H Accent Lamp - Right Instrument Panel (-C70)E1G Accent Lamp - Left Instrument Panel (C70)E1H Accent Lamp - Right Instrument Panel (C70)
7: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
8: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter (UQ3)P19V Speaker - Right Front Tweeter (UQA)
9: E8K Instrument Panel Courtesy Lamp - Right (C70) E8K Instrument Panel Courtesy Lamp - Right
10: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
11: A22 Radio Controls (IOB) A22 Radio Controls
12: S3 Transmission Shift Lever (MX0) S3 Transmission Shift Lever
13: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2
14: T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear
15: S38 Ignition Mode Switch S38 Ignition Mode Switch
16: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
17: E8J Instrument Panel Courtesy Lamp - Left (C70) E8J Instrument Panel Courtesy Lamp - Left
18: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
19: K60 Steering Column Lock Module (N06) K60 Steering Column Lock Module
20: S42 Headlamp Leveling Switch (TR6) S42 Headlamp Leveling Switch
21: B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor
22: S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch
23: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch

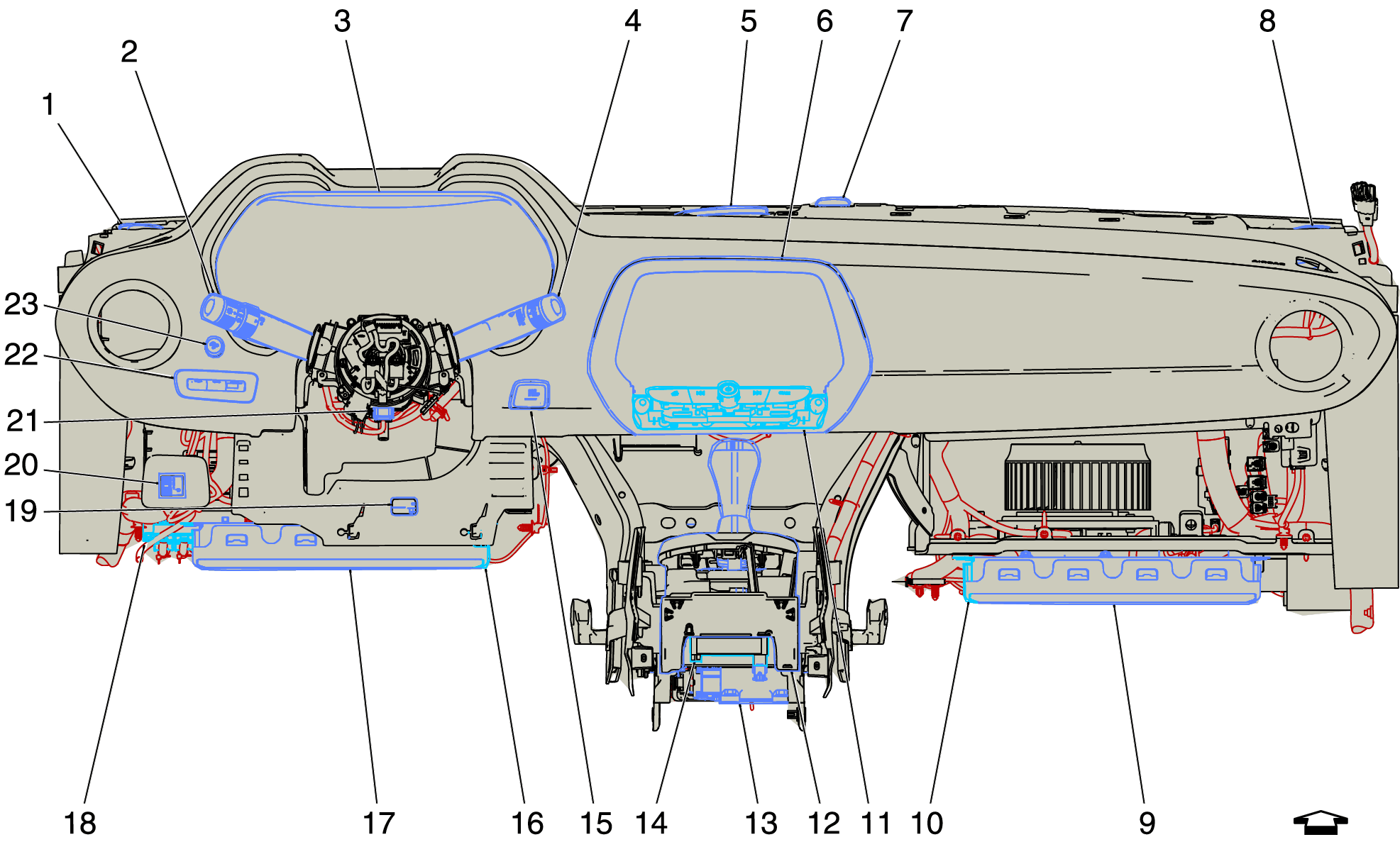

Fig 1: Instrument Panel Components - Front
GM4240099Courtesy of GENERAL MOTORS COMPANY
