Instrument Panel Components - Rear

Items
1: K126 Accent Lamp Control Module (C70) K126 Accent Lamp Control Module
2: A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (IOB)A11 Radio X2 (IO5/IO6)A11 Radio X3 (IO5/IO6)A11 Radio X3 (IOB)A11 Radio X4 (IO5/IO6/IOB)A11 Radio X5 (IO5/IO6)A11 Radio X5 (IOB)A11 Radio X6 (IO5/IO6/IOB)A11 Radio X7 (IOB)A11 Radio X9 (IO5/IO6)
3: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
4: T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
5: P29 Head-Up Display (UV6) P29 Head-Up Display X1 P29 Head-Up Display X2
6: P17 Info Display Module P17 Info Display Module X1 (IO5/IO6)P17 Info Display Module X1 (IOB)P17 Info Display Module X2 P17 Info Display Module X3 E1G Accent Lamp - Left Instrument Panel (-C70)E1H Accent Lamp - Right Instrument Panel (-C70)E1G Accent Lamp - Left Instrument Panel (C70)E1H Accent Lamp - Right Instrument Panel (C70)
7: S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch
8: S42 Headlamp Leveling Switch (TR6) S42 Headlamp Leveling Switch
9: K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 K56 Serial Data Gateway Module X2
10: K31 Navigation Control Module (IO6 with MAW) K31 Navigation Control Module X1 K31 Navigation Control Module X2 K31 Navigation Control Module X3 K31 Navigation Control Module X5 K31 Navigation Control Module X6 K31 Navigation Control Module X7
11: K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2 K74 Human Machine Interface Control Module X3 K74 Human Machine Interface Control Module X5 K74 Human Machine Interface Control Module X7
12: T15 Navigation Antenna Signal Splitter T15 Navigation Antenna Signal Splitter X1 T15 Navigation Antenna Signal Splitter X2 T15 Navigation Antenna Signal Splitter X3
13: K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4

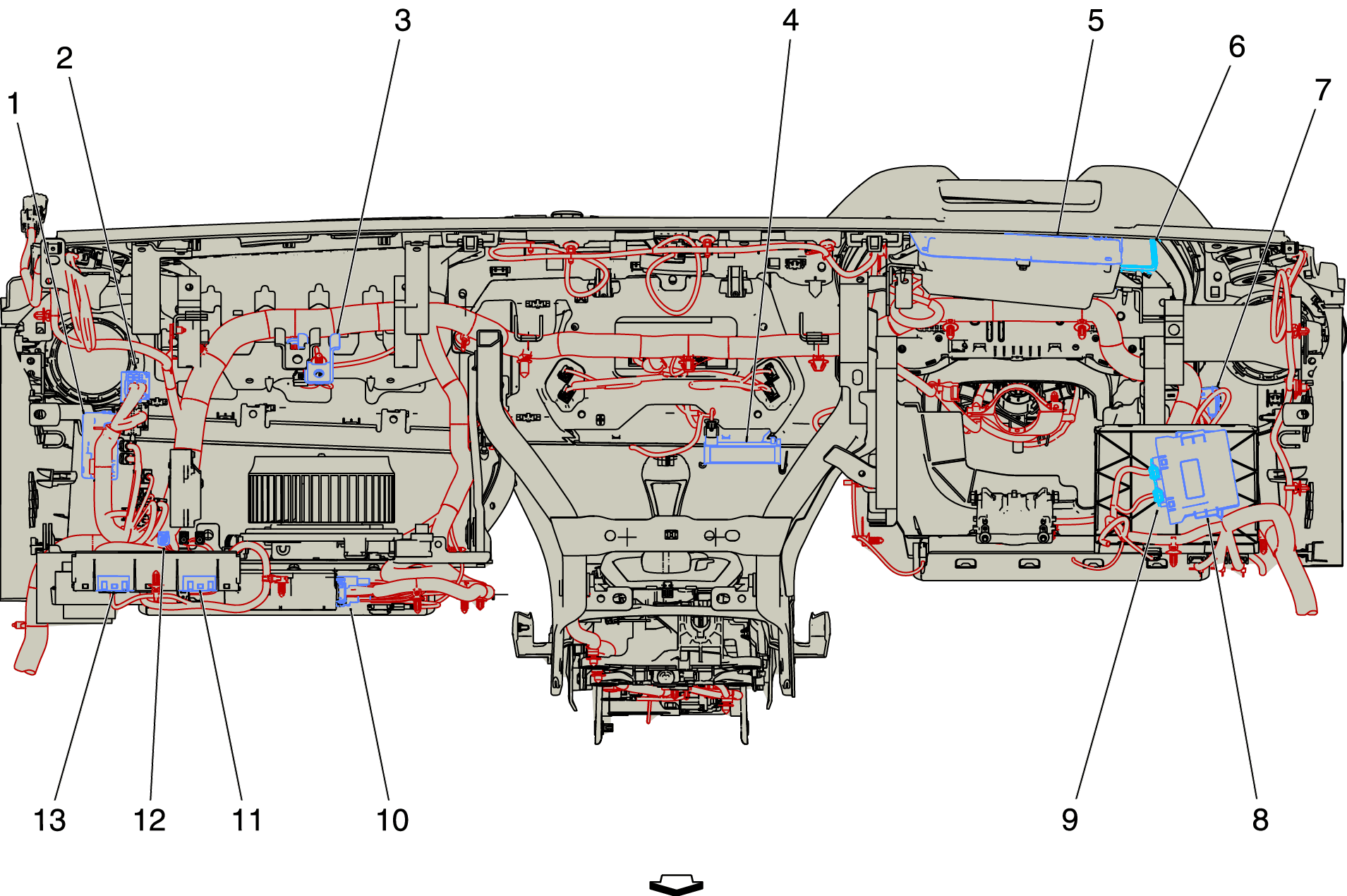

Fig 1: Instrument Panel Components - Rear

Courtesy of GENERAL MOTORS COMPANY
