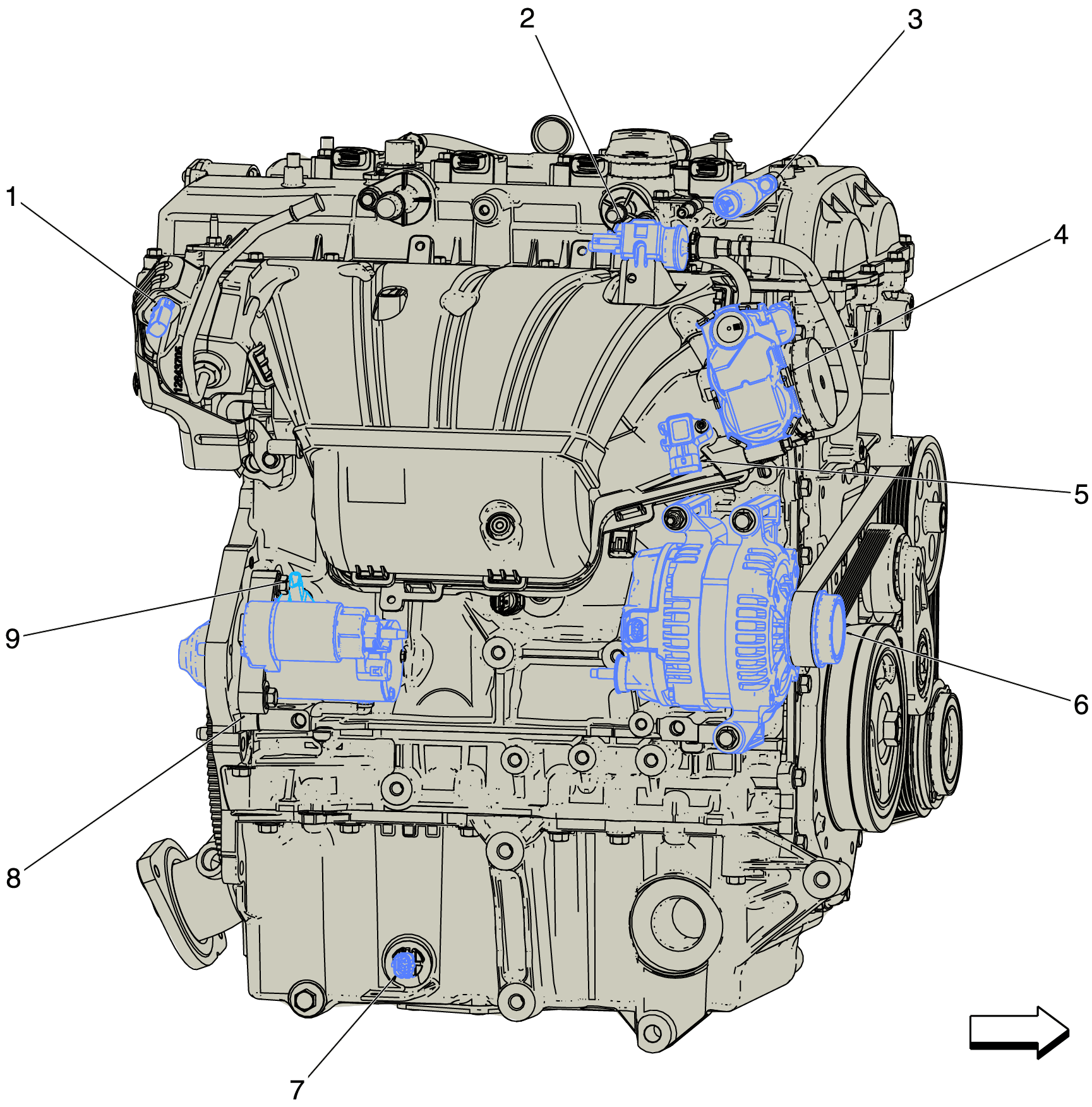

Engine Components - Right Side on Intake Manifold (LTG)
Engine Components - Right Side on Intake Manifold (LTG)
| Items |
|---|
| 1: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 2: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3: Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG) Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 4: Q38 Throttle Body Q38 Throttle Body (LTG) |
| 5: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LTG) |
| 6: G13 Generator G13 Generator X1G13 Generator X2 |
| 7: B35 Engine Oil Level Switch B35 Engine Oil Level Switch |
| 8: M64 Starter Motor M64 Starter Motor |
| 9: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LTG) |
