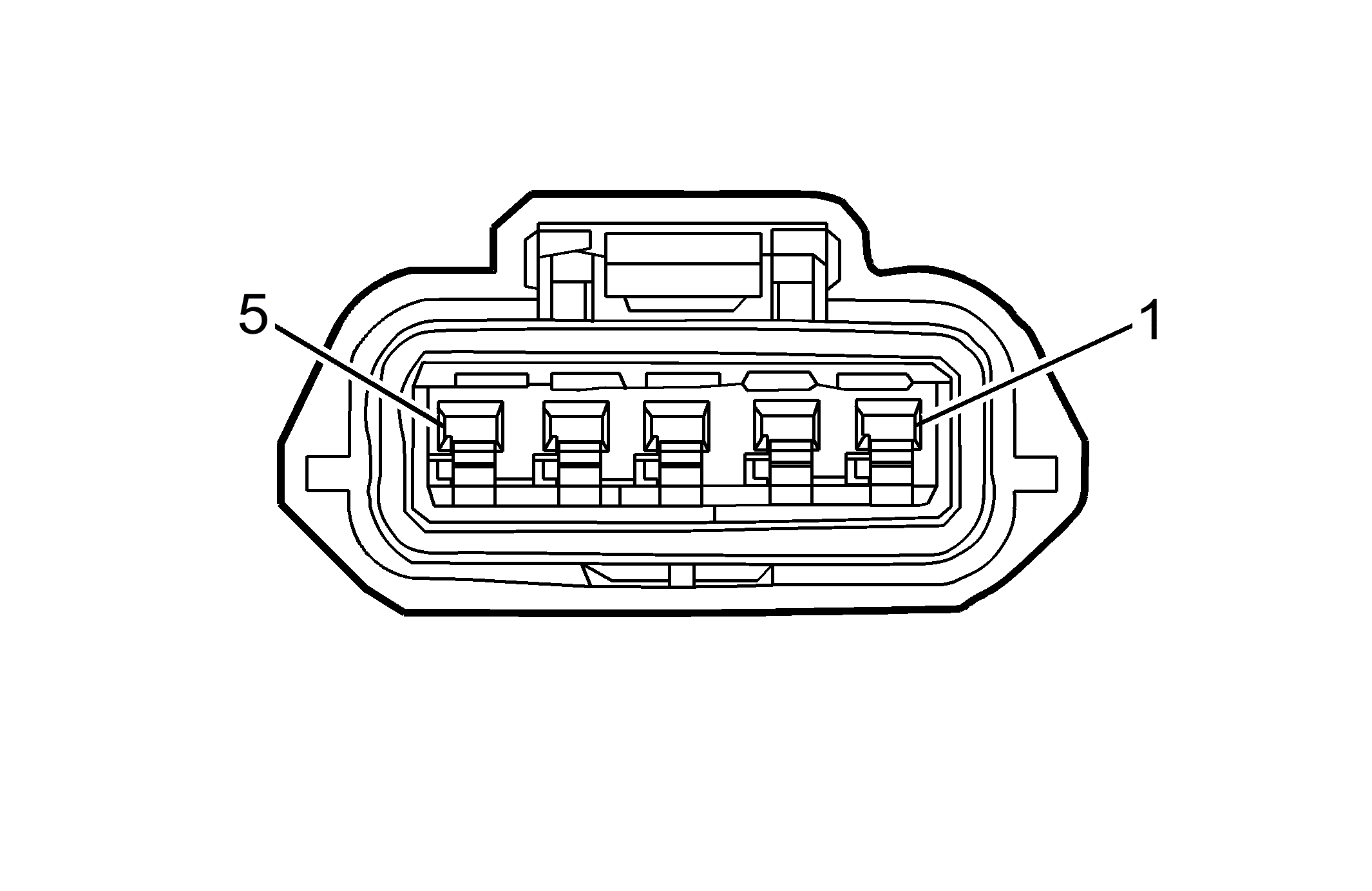

A7 Fuel Pump And Level Sensor Assembly
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: E05FGY-RS
- Service Connector: Service by Harness - See Parts Catalog
- Description: 5-Way F 090 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
GN |
AC20 |
Fuel Pump Relay Supply Voltage |
I |
- |
| 2 |
- |
BN |
MA05 |
Fuel Level Sensor Signal |
I |
- |
| 3 |
- |
BK |
AE06 |
Ground |
I |
- |
| 4 |
- |
BU |
AB43 |
Fuel Temperature Sensor 5 Volt Reference |
I |
- |
| 5 |
- |
GY |
MA16 |
Fuel Temperature Sensor Signal |
I |
- |
