Center Console

GM3946457Courtesy of
Center Console

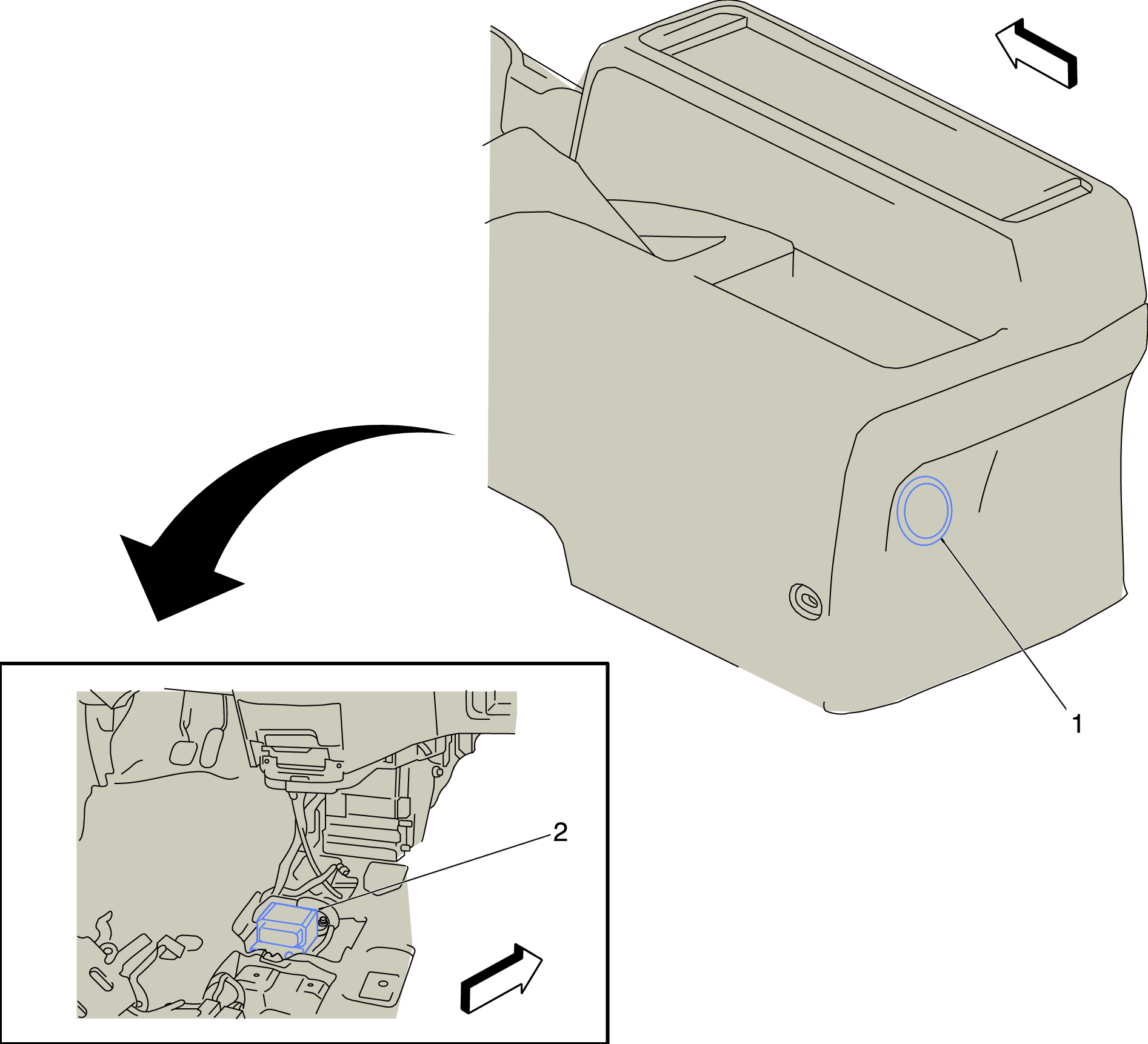

Items Callout
X80L Accessory Power Receptacle - Center Console Rear CONNECTOR VIEW (1)
K36 Inflatable Restraint Sensing and Diagnostic Module CONNECTOR VIEW , CONNECTOR VIEW , and CONNECTOR VIEW (2)
