Instrument Panel
Instrument Panel

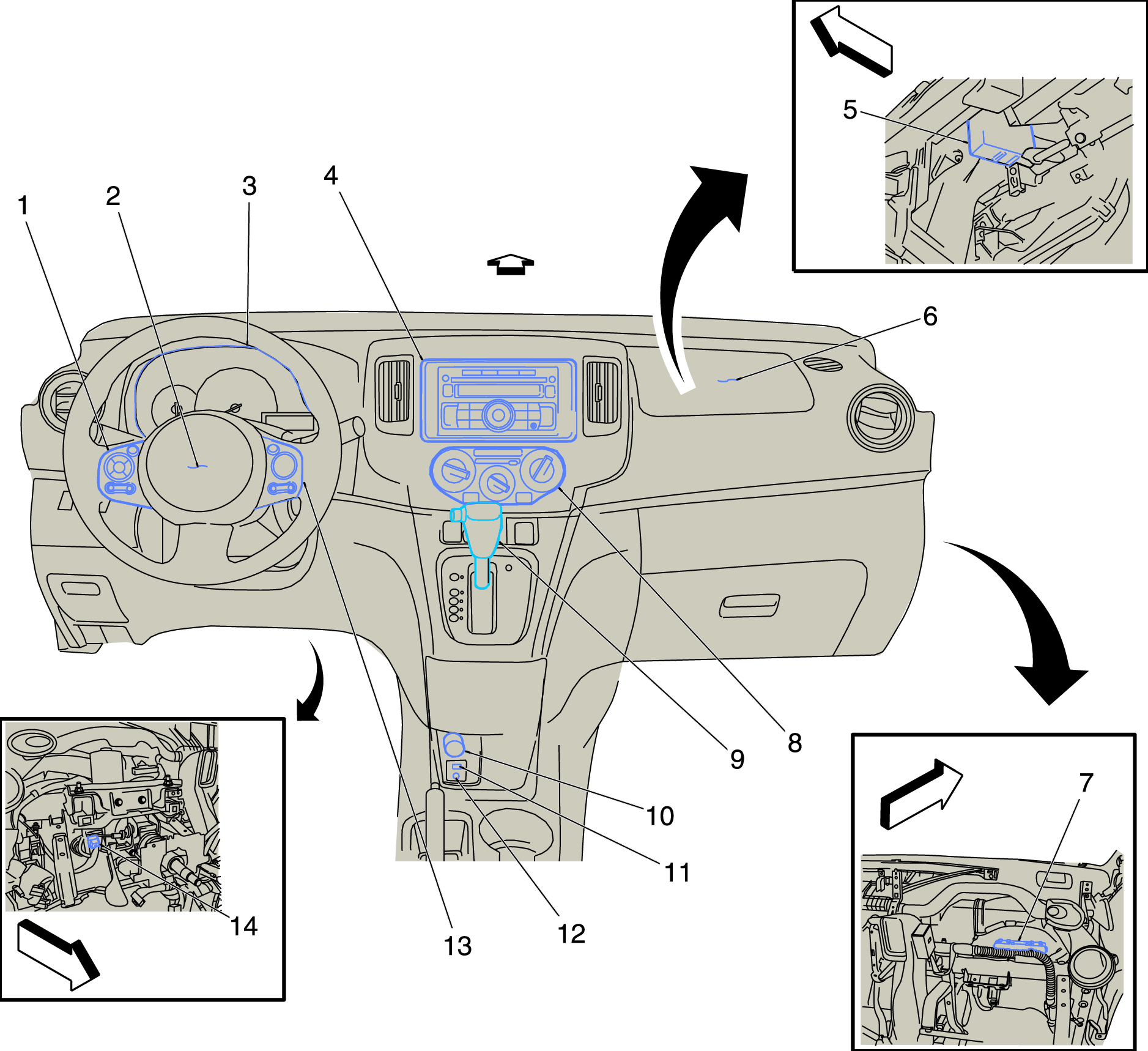

| Items | Callout |
|---|---|
| S70L Steering Wheel Controls Switch - Left | (1) |
| F107 Steering Wheel Air Bag CONNECTOR VIEW , and CONNECTOR VIEW | (2) |
| P16 Instrument Cluster CONNECTOR VIEW | (3) |
| A11 Radio CONNECTOR VIEW , CONNECTOR VIEW , and CONNECTOR VIEWCONNECTOR VIEW , CONNECTOR VIEW , and CONNECTOR VIEW | (4) |
| K77 Remote Control Door Lock Receiver CONNECTOR VIEW | (5) |
| F101 Passenger Instrument Panel Air Bag CONNECTOR VIEW , and CONNECTOR VIEW | (6) |
| K9 Body Control Module CONNECTOR VIEW , CONNECTOR VIEW , and CONNECTOR VIEW | (7) |
| A26 HVAC Controls CONNECTOR VIEW | (8) |
| S3 Transmission Shift Lever CONNECTOR VIEW | (9) |
| X80H Accessory Power Receptacle - Center Console CONNECTOR VIEW | (10) |
| X83 Auxiliary Audio Input CONNECTOR VIEW , CONNECTOR VIEW , and CONNECTOR VIEW | (11) |
| X83 Auxiliary Audio Input CONNECTOR VIEW , CONNECTOR VIEW , and CONNECTOR VIEW | (12) |
| S70R Steering Wheel Controls Switch - Right | (13) |
| K43 Power Steering Control Module CONNECTOR VIEW , CONNECTOR VIEW , and CONNECTOR VIEW | (14) |
