Theft Deterrent Module Replacement
Courtesy of GENERAL MOTORS COMPANY

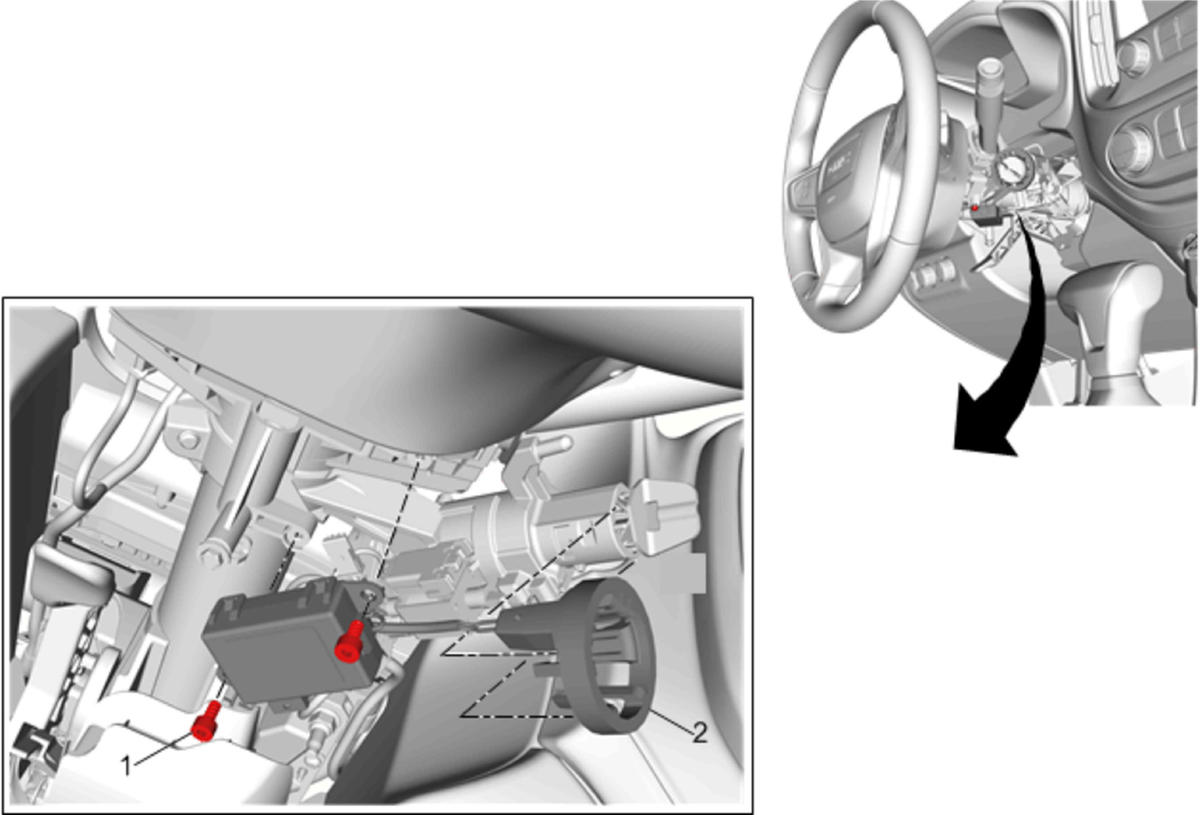

| Callout |
Component Name |
|
Preliminary Procedure
- Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement
.
- Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement
.
|
| 1 |
Theft Deterrent Module Fastener (Qty: 2)
Tighten
2.5 N.m (22 lb in) |
| 2 |
Theft Deterrent Module Procedure
- Disconnect the electrical connector.
- Slide the module to remove from the housing.
- Refer to Control Module References
for programming and set up procedures.
|
